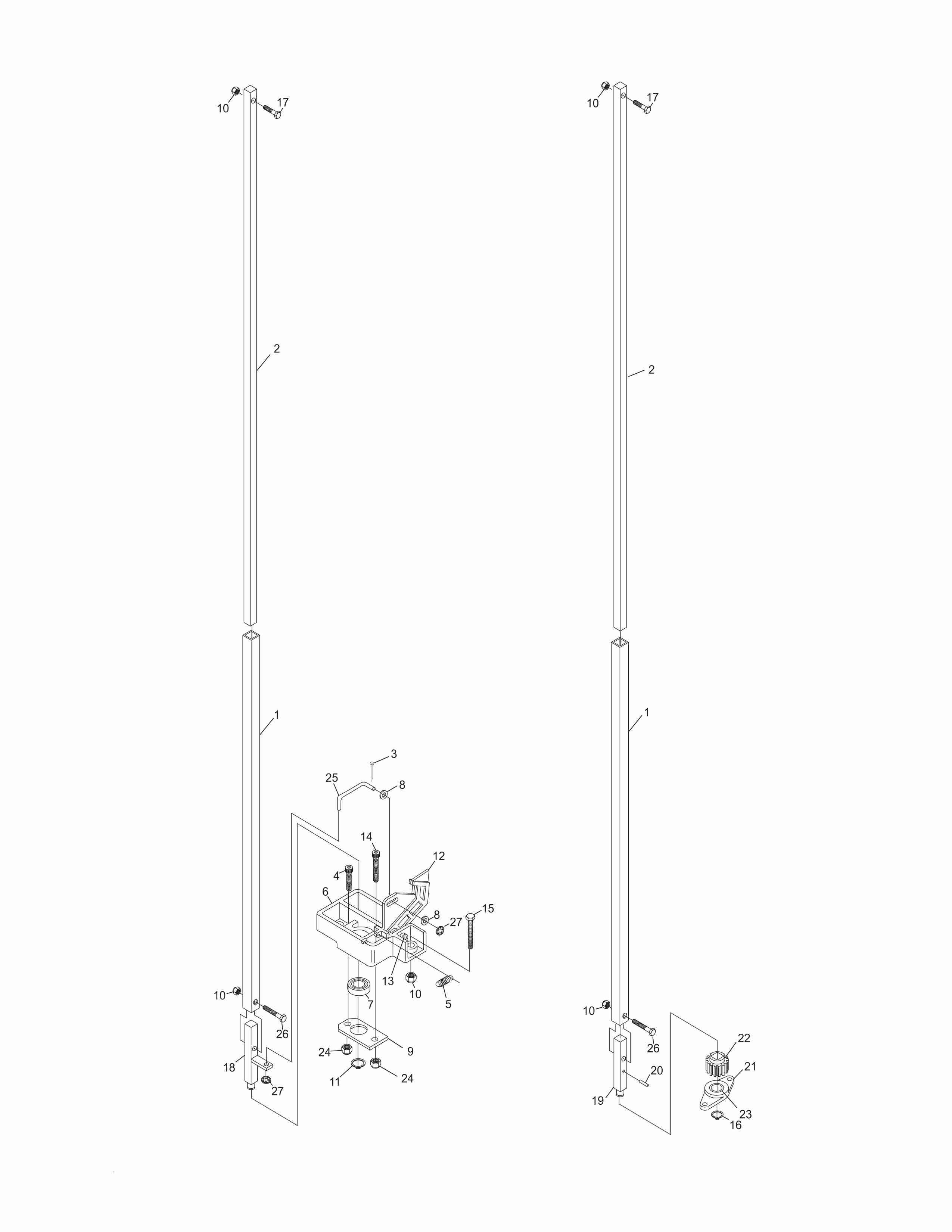

Square Shaft Assemblies (Tower Down) - Series 443 and Later
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-055124-004
|
Square Shaft |
| 2 |
47-055125-004
|
Square Shaft |
| 3 |
11-051795-001
|
Cotter Pin |
| 4 |
11-051522-001
|
Socket Hd. Cap Screw |
| 5 |
47-051782-004
|
Tension Spring |
| 6 |
47-051621-003
|
Base |
| 7 |
11-430046-000
|
Bearing |
| 8 |
11-052025-001
|
Flat Washer |
| 9 |
47-051622-004
|
Bearing Plate |
| 10 |
47-055605-004
|
Bearing Plate (series 446 and above) |
| 11 |
11-051854-001
|
Retaining Ring |
| 12 |
47-051674-004
|
Latch |
| 13 |
47-055151-004
|
Dowel Pin |
| 14 |
11-051514-001
|
Socket Hd. Cap Screw |
| 15 |
11-051024-001
|
Hex Hd. Cap Screw |
| 16 |
11-051855-001
|
Retaining Ring |
| 17 |
11-051030-001
|
Hex Hd. Cap Screw |
| 18 |
47-055127-004
|
L.H. Bottom Shaft Bracket - pin release |
| 19 |
47-055126-004
|
R.H. Bottom Shaft Bracket - spotting tong |
| 20 |
11-052680-001
|
Roll Pin |
| 21 |
11-430048-000
|
Bearing |
| 22 |
47-071615-004
|
Square Shaft Gear |
| 23 |
47-051625-004
|
Square Shaft Support |
| 24 |
11-051742-001
|
Locknut |
| 25 |
47-055138-004
|
Connecting Link (includes 2 speed nuts) |
| 26 |
11-051004-001
|
Hex Hd. Cap Screw |
| 26 |
47-861001-001
|
Hex Hd. Cap Screw |
| 27 |
11-053476-001
|
Speed Nut |
| 28 |
11-051747-001
|
Locknut |
