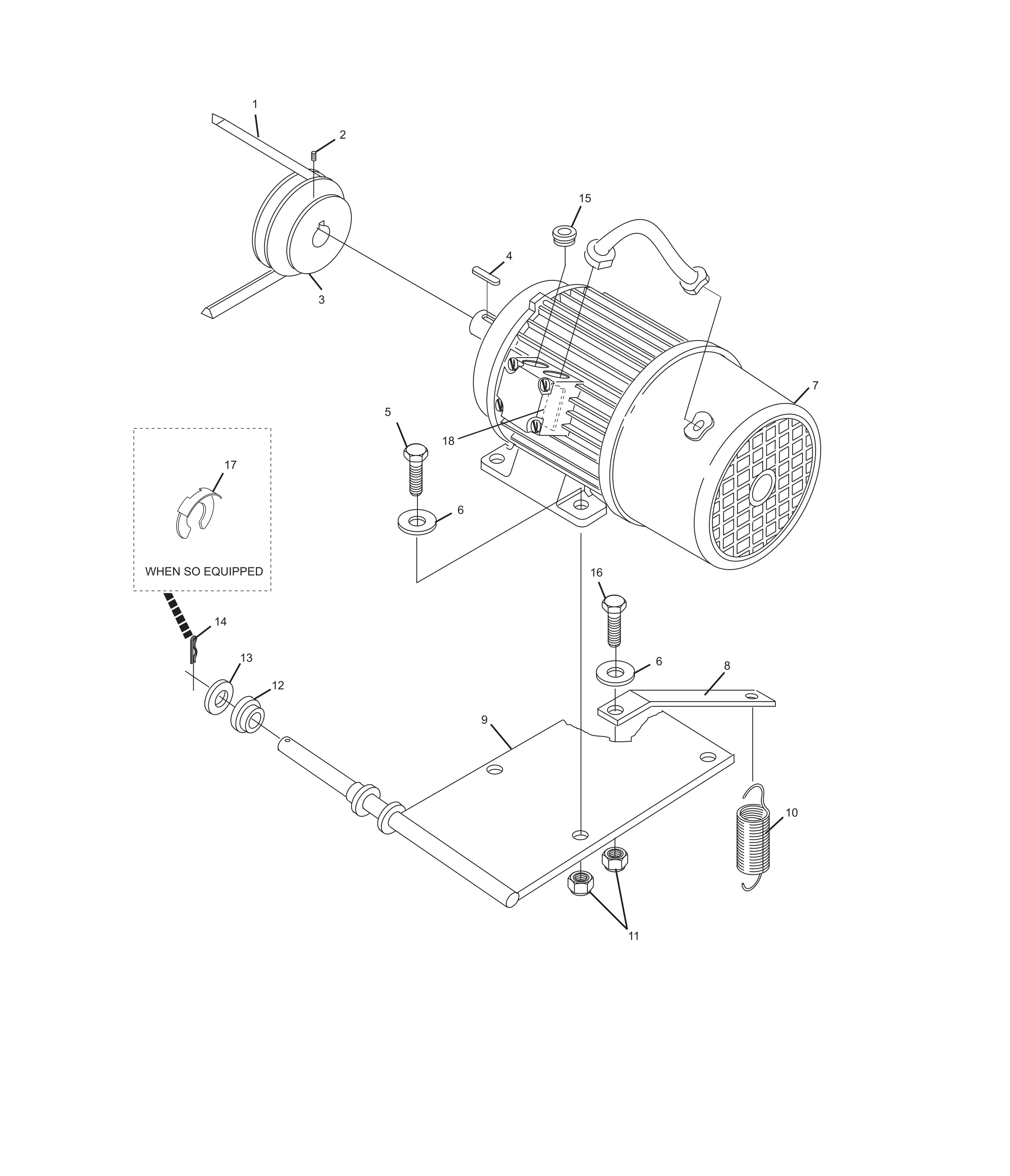

Setting Table Stop Motor and Mount Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
11-053902-000
|
V-Belt (Setting Table Motor) |
| 2 |
11-053100-000
|
Set Screw |
| 3 |
47-073866-004
|
Motor Drive Pulley - Dual Sheave (50 or 60 Hz) |
| 4 |
11-053501-000
|
Key |
| 5 |
11-051028-001
|
Hex Hd. Cap Screw |
| 6 |
11-052048-001
|
Flat Washer |
| 7 |
99-040116-002
|
Motor |
| 7 |
99-076365-000
|
Setting Table Motor AC/400VAC, 0.37 kW) |
| 7 |
99-040294-004
|
Motor |
| 7 |
99-076364-000
|
Setting Table Motor , 0.37kW) |
| 8 |
47-070167-004
|
Bracket |
| 9 |
47-075147-003
|
Motor Mount Bracket |
| 10 |
99-020163-004
|
Spring |
| - |
11-051743-001
|
Locknut |
| 12 |
99-010102-004
|
Bearing |
| 13 |
11-052036-001
|
Flat Washer |
| 14 |
11-054301-001
|
Hitch Pin |
| 14 |
47-861032-001
|
Hitch Pin |
| 15 |
11-680925-000
|
Strain Relief (all drum and external brake motors) |
| 15 |
11-055080-000
|
Strain Relief (all disc brake motors) |
| 16 |
11-051022-001
|
Hex Hd. Cap Screw |
| 17 |
11-055400-000
|
Circlip |
| 18 |
99-070408-004
|
PCB for New Brake Motor |
| 19 |
99-070407-004
|
New Brake Kit |
