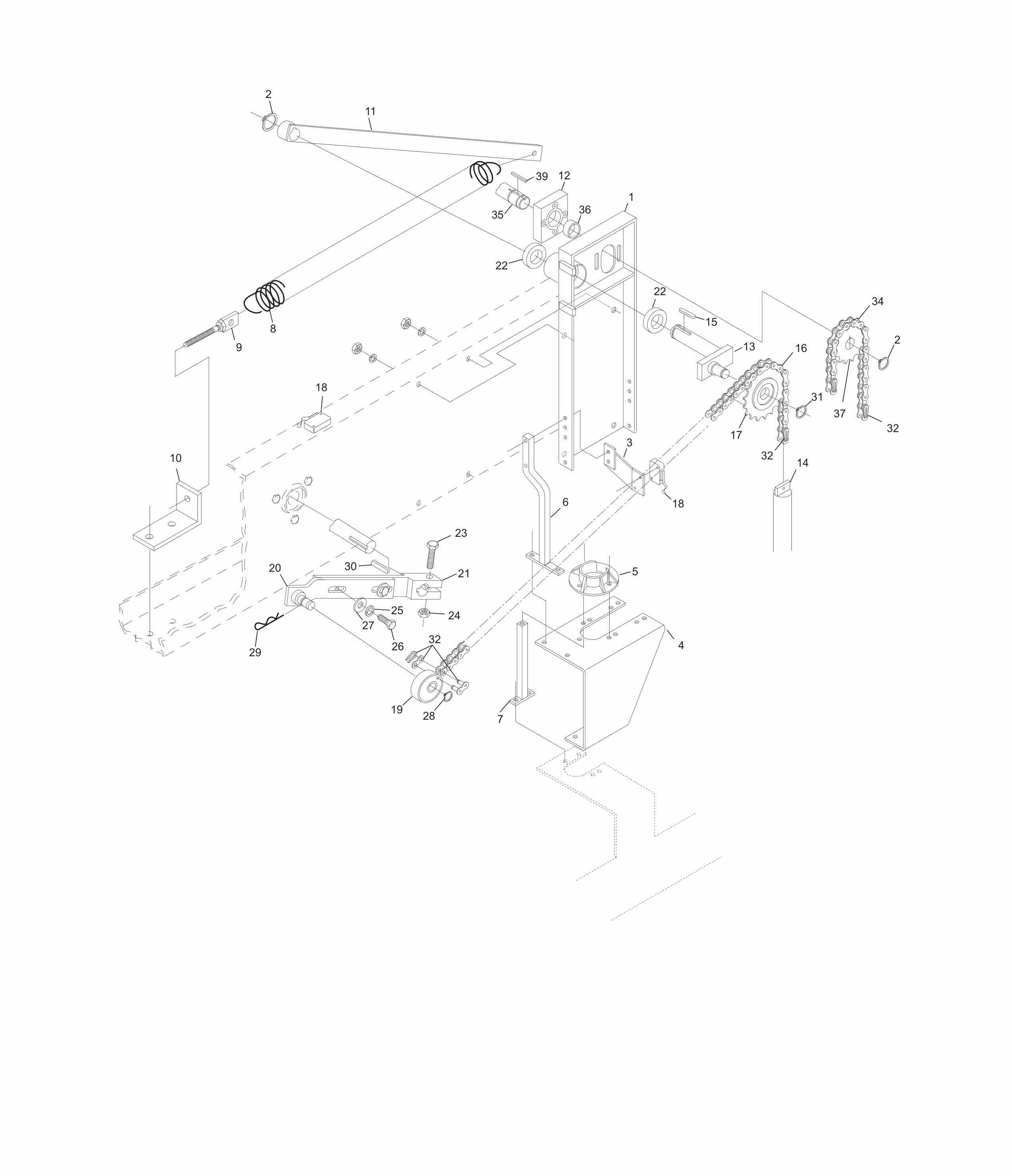

Guide Tower Assembly (Machine Series 443 and Above)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-075482-002
|
Guide Beam |
| 2 |
11-051856-001
|
Retaining Ring |
| 3 |
47-075473-003
|
Switch Support |
| 4 |
47-085436-003
|
R.H. Guide Support Bracket |
| 4 |
47-085430-003
|
L.H. Guide Support Bracket |
| 5 |
47-085349-003
|
Tube Guide |
| 6 |
47-085449-003
|
Support Rod |
| 7 |
47-085446-003
|
Support |
| 7 |
47-085446-004
|
Support |
| 8 |
55-050635-004
|
Tension Spring |
| 9 |
47-074717-004
|
Adjustment Screw |
| 10 |
47-075432-004
|
Spring Bracket |
| 11 |
47-075475-004
|
Lever |
| 12 |
47-085348-003
|
Bearing Housing |
| 13 |
47-071591-004
|
Sprocket Shaft |
| 14 |
47-070386-004
|
Counter Weight |
| 15 |
11-053507-000
|
Key |
| 16 |
47-075488-004
|
5/8” Chain (51 links and 2 connection links) |
| 17 |
47-011053-004
|
Sprocket |
| 18 |
47-243028-004
|
Cherry Switch (silver, consolidated and nexgen electronics box) |
| 19 |
47-075352-004
|
Pivot Bearing |
| 20 |
47-075357-003
|
Crank Arm |
| 21 |
47-075356-003
|
Crank |
| 22 |
11-430052-000
|
Bearing |
| 23 |
11-051070-001
|
Hex Hd. Cap Screw |
| 24 |
11-051747-001
|
Locknut |
| 25 |
11-051772-001
|
Lockwasher |
| 26 |
11-051062-001
|
Hex Hd. Machine Screw |
| 27 |
11-052024-001
|
Flat Washer |
| 27 |
47-861010-001
|
Flat Washer |
| 28 |
11-054106-001
|
Flat Washer |
| 28 |
47-861031-001
|
Flat Washer |
| 29 |
11-054300-001
|
Cotter Pin |
| 30 |
11-053493-000
|
Key |
| 31 |
11-051852-000
|
Retaining Ring |
| 31 |
11-051852-001
|
Retaining Ring |
| 32 |
11-600500-000
|
Master Link (3 pieces) |
| 33 |
47-862803-000
|
Chain Lube (spray can) |
| 33 |
G34-205116-000
|
Pinsetter Chain Lube (12 oz. can) |
| 34 |
47-075486-004
|
Chain |
| 35 |
47-075476-004
|
Shaft |
| 36 |
11-430051-000
|
Bearing |
| 37 |
47-075474-004
|
Chain Gear |
| 37 |
47-075474-009
|
Chain Gear w/Set Screws |
| 39 |
11-053503-000
|
Key |
