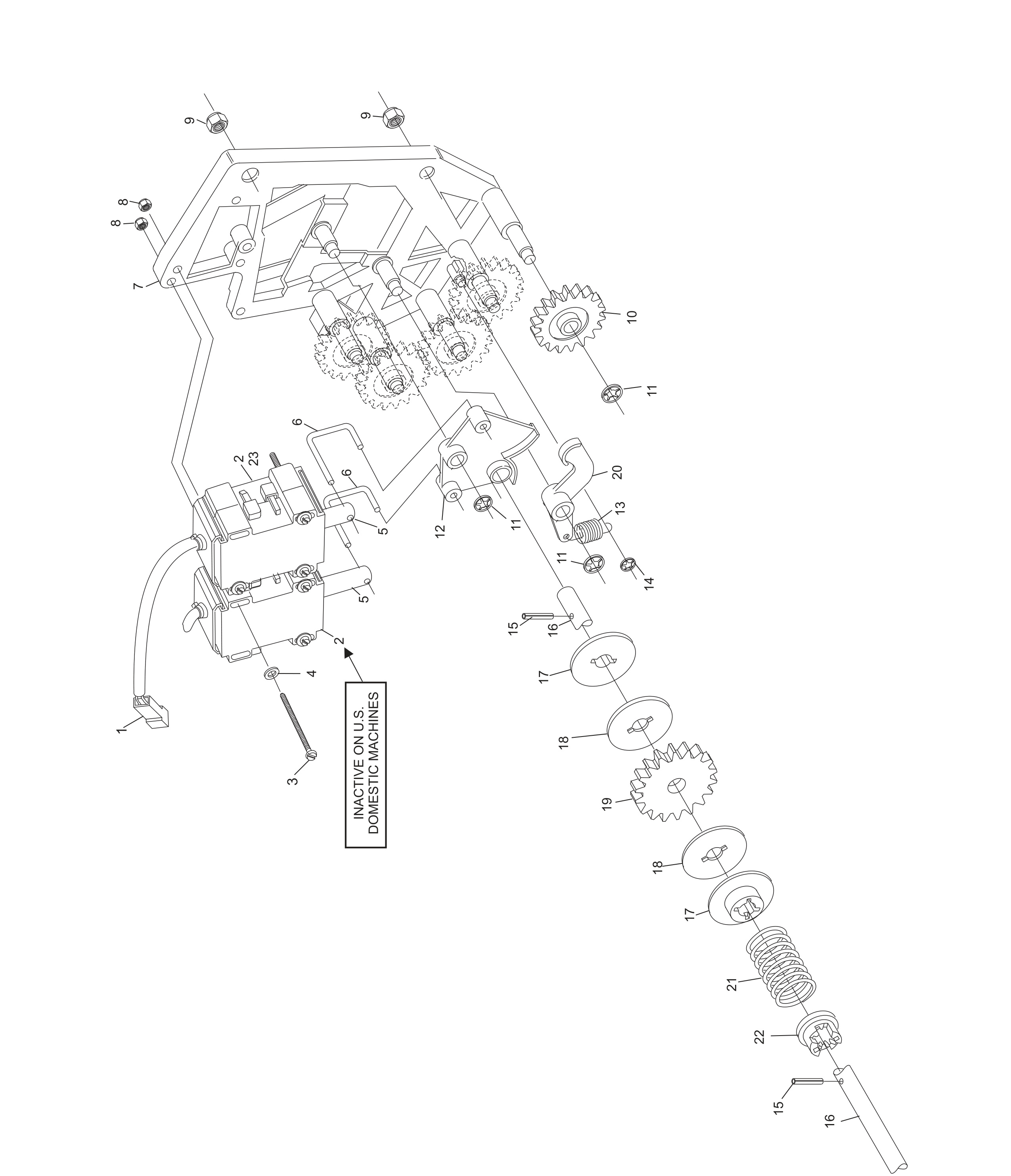

Gear Cluster Assembly
Позиции с кодом N.A.:
- 1 — N.A. — Plug Only
| Позиция | Артикул | Наименование |
|---|---|---|
| 2 |
99-060219-004
|
Solenoid Assembly w/Plug (red box) |
| 3 |
11-052202-001
|
Slotted Machine Screw |
| 4 |
11-052039-001
|
Flat Washer |
| 5 |
99-060133-004
|
Plunger Only |
| 6 |
47-071865-004
|
Connecting Link |
| 7 |
47-071858-002
|
Solenoid Holder |
| 8 |
11-051742-001
|
Locknut |
| 9 |
11-051745-001
|
Locknut |
| 10 |
47-072023-004
|
Cluster Gear |
| 11 |
11-053478-001
|
Speed Nut |
| 11 |
47-861050-000
|
Speed Nut |
| 12 |
47-071859-004
|
Pivot Lever Plate |
| 13 |
47-071866-004
|
Tension Spring |
| 14 |
11-053481-001
|
Speed Nut |
| 15 |
11-052688-001
|
Rolled Pin |
| 15 |
47-861051-009
|
Roll Pin |
| 16 |
47-071883-004
|
Clutch Shaft |
| 17 |
47-071863-004
|
Spring Retainer |
| 18 |
47-071864-004
|
Clutch Disc |
| 19 |
47-071862-004
|
Clutch Gear |
| 20 |
47-071860-004
|
Pivot Lever |
| 21 |
47-071868-004
|
Compression Spring |
| 22 |
47-071869-003
|
Spring Tightener |
| 23 |
47-243030-004
|
Solenoid Assembly w/Plug (silver and consolidated box) |
| 23 |
99-070356-004
|
Solenoid |
