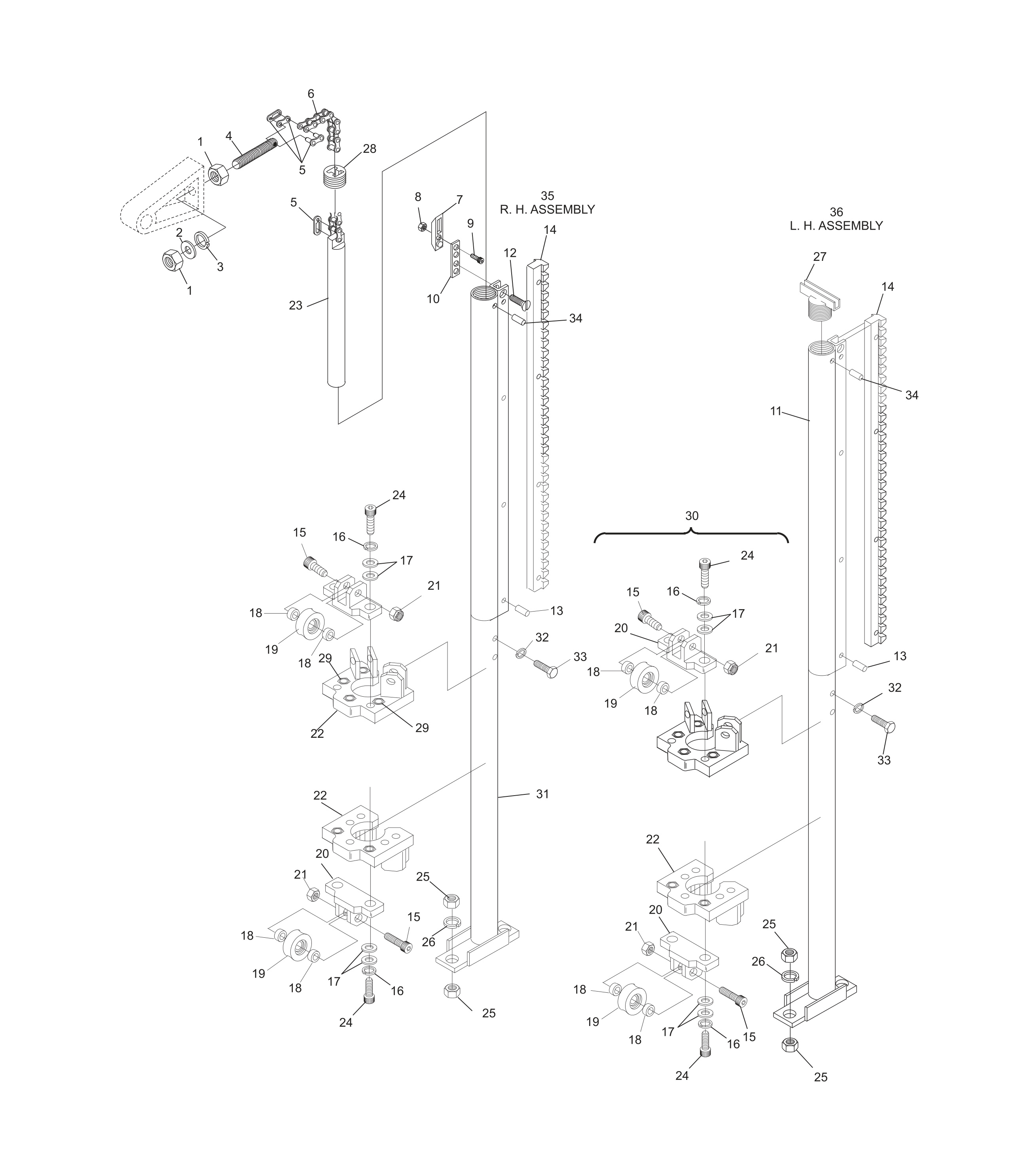

Table Rack and Roller Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
11-051706-001
|
Hex Nut |
| 2 |
11-051772-001
|
Lockwasher |
| 3 |
11-052024-001
|
Flat Washer |
| 3 |
47-861010-001
|
Flat Washer |
| 4 |
47-071975-004
|
Threaded Connector |
| 5 |
11-600500-000
|
Master Link (3 pieces) |
| 6 |
11-601007-000
|
Roller Chain (64 Links) |
| 7 |
47-050926-004
|
Cam |
| 8 |
11-051743-001
|
Locknut |
| 9 |
11-051509-001
|
Socket Hd. Cap Screw |
| 10 |
47-051490-004
|
Cam Holder |
| 11 |
47-052347-003
|
Upper Deck Rack Tube |
| 12 |
11-052451-001
|
Sltd. Flat Ctsk. Hd. Machine Screw |
| 13 |
11-052679-001
|
Rolled Pin |
| 14 |
47-050365-003
|
Toothed Rack |
| 15 |
11-051518-001
|
Socket Hd. Cap Screw |
| 16 |
11-051771-001
|
Lockwasher |
| 17 |
11-052018-001
|
Flat Washer |
| 18 |
47-071162-004
|
Spacer Bushing |
| 19 |
47-071148-004
|
Roller |
| 20 |
47-071170-003
|
Roller Support (small) |
| 21 |
11-051745-001
|
Locknut |
| 22 |
47-071171-003
|
Roller Support (large) |
| 23 |
47-070386-004
|
Counter Weight |
| 24 |
11-051517-001
|
Socket Hd. Cap Screw |
| 25 |
11-051707-001
|
Hex Nut |
| 25 |
11-051748-001
|
Locknut |
| 26 |
11-051774-001
|
Lockwasher |
| 27 |
47-071871-003
|
T-Stop |
| 28 |
47-070401-004
|
Threaded Cap |
| 29 |
11-051703-001
|
Hex Nut |
| 30 |
47-071161-003
|
Roller Support Complete |
| 31 |
47-052346-003
|
Deck Rack Tube (lower) |
| 32 |
11-051770-001
|
Lockwasher |
| 33 |
11-051066-001
|
Hex Hd. Cap Screw |
| 34 |
11-052684-001
|
Rolled Pin |
| 35 |
47-052458-009
|
R.H. Assembly |
| 36 |
47-052459-009
|
L.H. Assembly |
