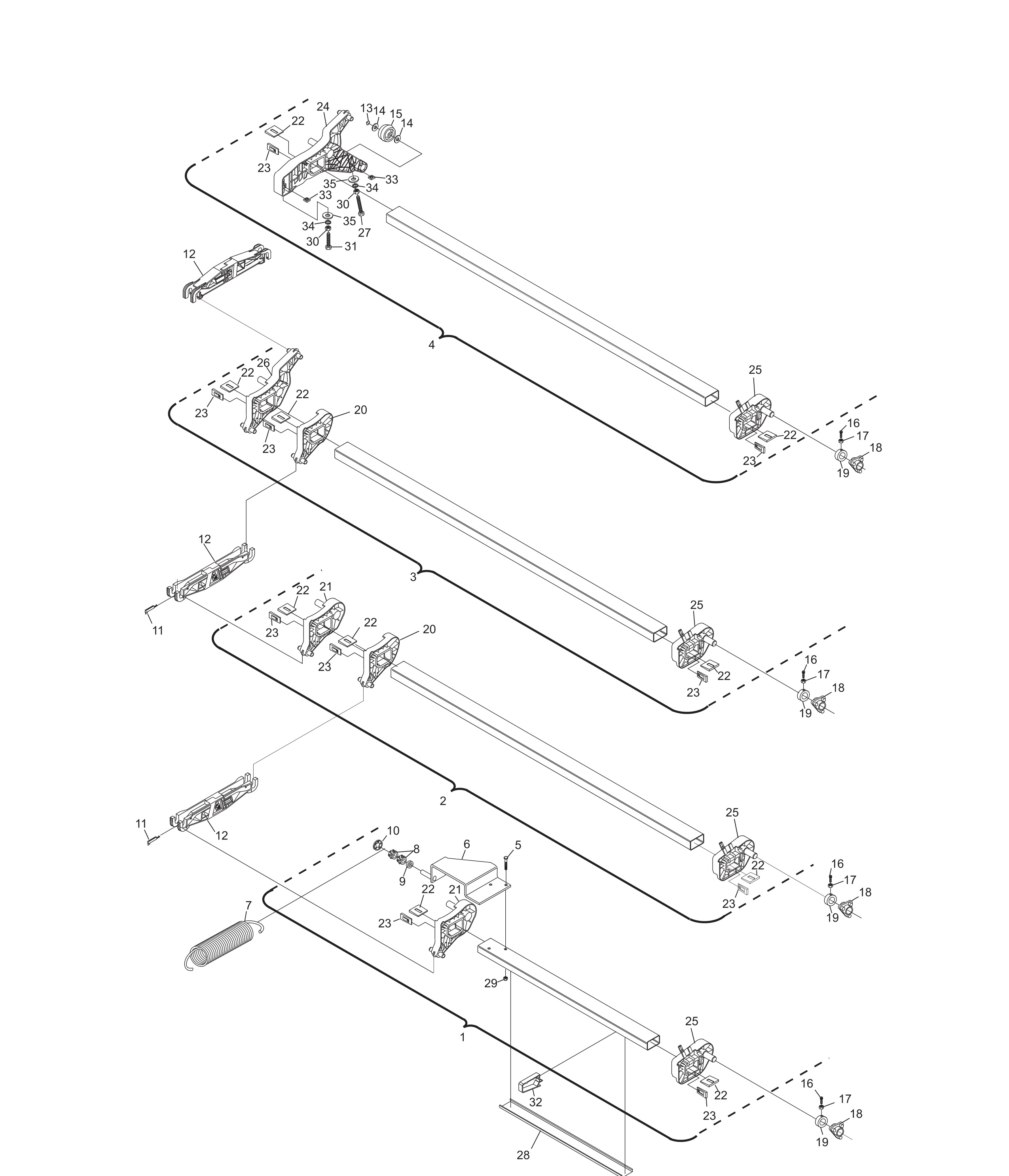

GS-X-CPO Setting Table Swing Shafts
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-055316-002
|
Shaft Assembly |
| 2 |
47-055318-002
|
Shaft Assembly |
| 3 |
47-055324-002
|
Shaft Assembly |
| 4 |
47-055326-002
|
Shaft Assembly |
| 5 |
11-051007-001
|
Hex Hd. Cap Screw |
| 6 |
47-055321-003
|
Spring Bracket |
| 7 |
47-052240-004
|
Tension Spring |
| 8 |
47-041813-004
|
Bushing |
| 9 |
47-071162-004
|
Spacer Bushing |
| 10 |
11-053480-001
|
Speed Nut |
| 11 |
47-054997-003
|
Pin |
| 12 |
47-055002-002
|
Link Assembly |
| 13 |
11-051851-000
|
Retaining Ring |
| 14 |
11-052024-001
|
Flat Washer |
| 14 |
47-861010-001
|
Flat Washer |
| 15 |
47-051295-004
|
Roller |
| 16 |
11-051522-001
|
Socket Hd. Cap Screw |
| 17 |
11-051701-001
|
Hex Nut |
| 18 |
46-050305-004
|
Plastic Bearing |
| 19 |
47-055009-004
|
Stop Collar |
| 20 |
47-054992-002
|
Lever |
| 21 |
47-054991-001
|
Lever |
| 22 |
47-055320-003
|
Wedge (large) |
| 23 |
47-055319-003
|
Wedge (small) |
| 24 |
47-054989-001
|
Lever (7-10 pin) |
| 25 |
47-054993-001
|
Lever |
| 26 |
47-054990-001
|
Lever |
| 27 |
11-051054-001
|
Hex Head Cap Screw |
| 28 |
47-055332-004
|
Channel Cover |
| 29 |
11-051743-001
|
Locknut |
| 30 |
11-051704-001
|
Hex Nut |
| 31 |
11-051026-001
|
Hex Hd. Machine Screw |
| 32 |
47-055327-001
|
Cable Support/Holder |
| 33 |
11-055900-001
|
Square Nut |
| 34 |
11-051770-001
|
Lockwasher |
| 35 |
11-052003-001
|
Flat Washer |
