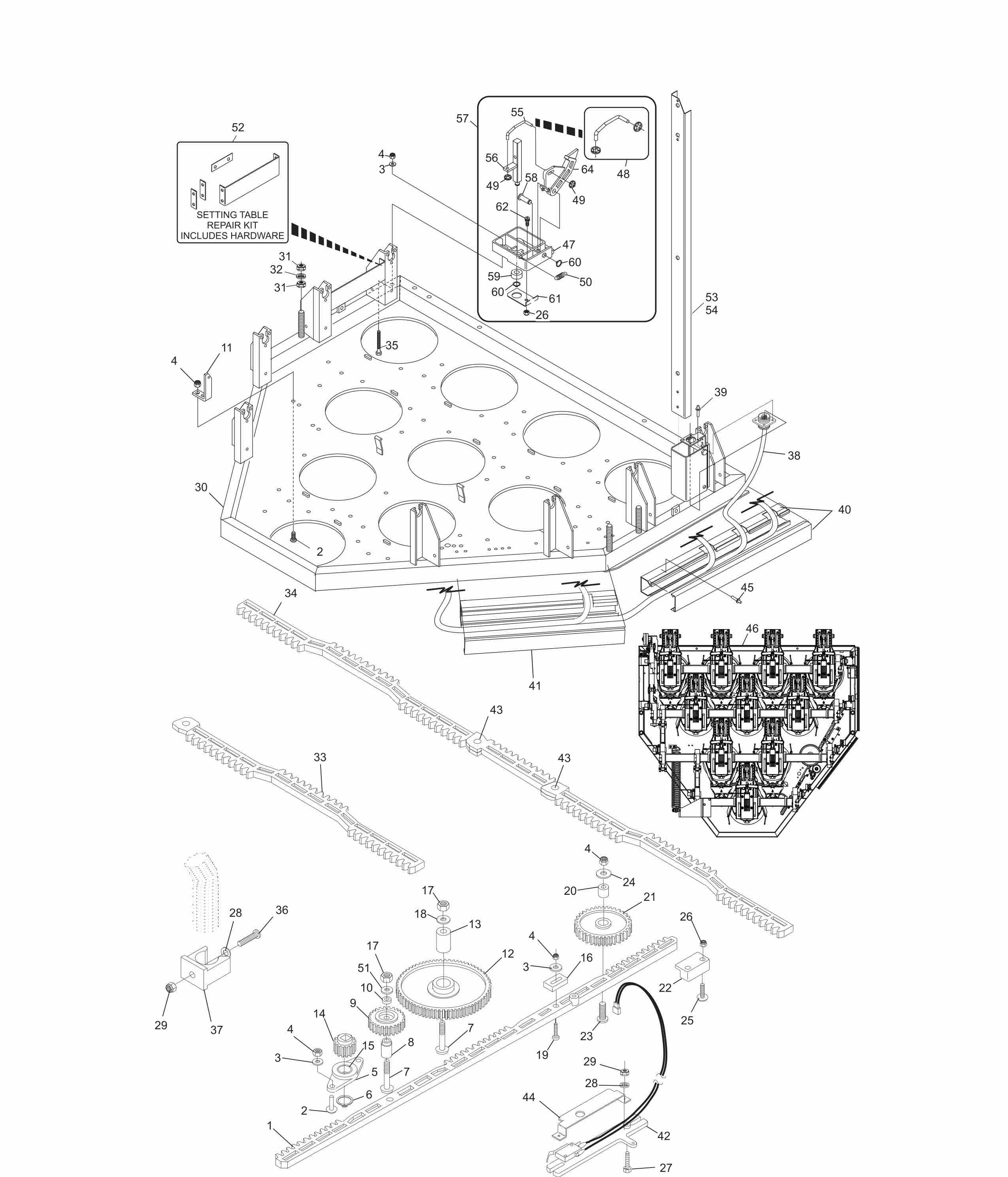

GS-X-CPO Setting Table and Gears (Series 424 and Above)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-051635-001
|
Geared Rack |
| 2 |
11-051880-001
|
Truss Hd. Machine Screw |
| 2 |
47-861008-001
|
Truss Hd. Machine Screw |
| 3 |
11-052008-001
|
Flat Washer |
| 4 |
11-051743-001
|
Locknut |
| 5 |
47-051625-004
|
Square Shaft Support |
| 6 |
11-051855-001
|
Retaining Ring |
| 7 |
11-051878-001
|
Truss Hd. Machine Screw |
| 8 |
47-052021-004
|
Spacer Bushing |
| 9 |
47-052020-004
|
Gear |
| 10 |
47-052022-004
|
Spacer Ring |
| 11 |
47-055347-004
|
Spring Holder Bracket |
| 12 |
47-051616-004
|
Gear |
| 13 |
47-051617-004
|
Spacer Bushing |
| 14 |
47-071615-004
|
Square Shaft Gear |
| 15 |
11-430048-000
|
Bearing |
| 16 |
47-051682-004
|
Stop |
| - |
11-051744-001
|
Locknut |
| 18 |
11-052019-001
|
Flat Washer |
| 19 |
11-051028-001
|
Hex Hd. Cap Screw |
| 20 |
47-051633-004
|
Spacer Bushing |
| 21 |
47-051632-004
|
Gear |
| 22 |
47-051634-004
|
Holder |
| 23 |
11-051877-001
|
Socket Hd. Machine Screw |
| 24 |
11-052037-001
|
Flat Washer |
| 25 |
11-052362-001
|
Sltd. Pan Hd. Machine Screw |
| 26 |
11-051742-001
|
Locknut |
| 27 |
11-052353-001
|
Sltd. Pan Hd. Machine Screw |
| 27 |
47-861017-001
|
Sltd. Pan Hd. Machine Screw |
| 28 |
11-052021-001
|
Flat Washer |
| 29 |
11-051741-001
|
Locknut |
| 30 |
47-055177-001
|
Setting Table Frame |
| 31 |
11-051707-001
|
Hex Nut |
| 32 |
11-051774-001
|
Lockwasher |
| 33 |
47-051565-002
|
Toothed Rack (front) |
| 34 |
47-053513-009
|
Toothed Rack Complete (center) |
| 35 |
11-051060-001
|
Hex Hd. Cap Screw |
| 36 |
11-052209-001
|
Sltd. Pan Hd. Machine Screw |
| 37 |
47-054279-004
|
Conduit Clamp |
| 38 |
47-245164-001
|
Setting Table Harness - complete |
| 39 |
11-053661-000
|
Rivet |
| 40 |
47-055169-003
|
Cable Channel - short |
| 41 |
47-055170-003
|
Cable Channel - long |
| 42 |
47-243027-004
|
Switch Complete (silver, consolidated and nexgen electronics box) |
| 42 |
99-050330-003
|
Bracket Only |
| 43 |
11-050301-000
|
Countersunk Head Rivet |
| 44 |
47-053812-004
|
Switch Protector |
| 45 |
11-053660-000
|
Rivet |
| 45 |
47-861025-000
|
Blind Rivet |
| 46 |
47-055166-009
|
GS-X Setting Table Assembly - Complete (includes Pinholders, Spotting Tongs, and Cables) |
| 47 |
47-051621-003
|
Base |
| 48 |
47-055138-004
|
Connecting Link (includes 2 speed nuts) |
| 49 |
11-053476-001
|
Speed Nut |
| 50 |
47-051782-004
|
Tension Spring |
| 51 |
11-052017-001
|
Flat Washer |
| 52 |
47-275620-009
|
Setting Table Repair Kit |
| 53 |
47-055167-003
|
Cable Guide |
| 54 |
47-861052-000
|
Cable Guide Clips |
| 55 |
47-055137-004
|
Connecting Link - only |
| 56 |
47-055127-004
|
L.H. Bottom Shaft Bracket - pin release |
| 57 |
47-055150-009
|
Drive Shaft - Assembly |
| 58 |
47-055151-004
|
Dowel Pin |
| 59 |
11-430046-000
|
Bearing |
| 60 |
11-051854-000
|
Retaing Ring |
| 61 |
47-055605-004
|
Bearing Plate (series 446 and above) |
| 62 |
11-051522-001
|
Socket Hd. Cap Screw |
| 64 |
47-051674-004
|
Latch |
