Brunswick Запчасти пинсеттеров серии GS | GS-Series Pinsetter Service Parts Section F SETTING TABLE GS-X-CPO Pin Holder Assembly

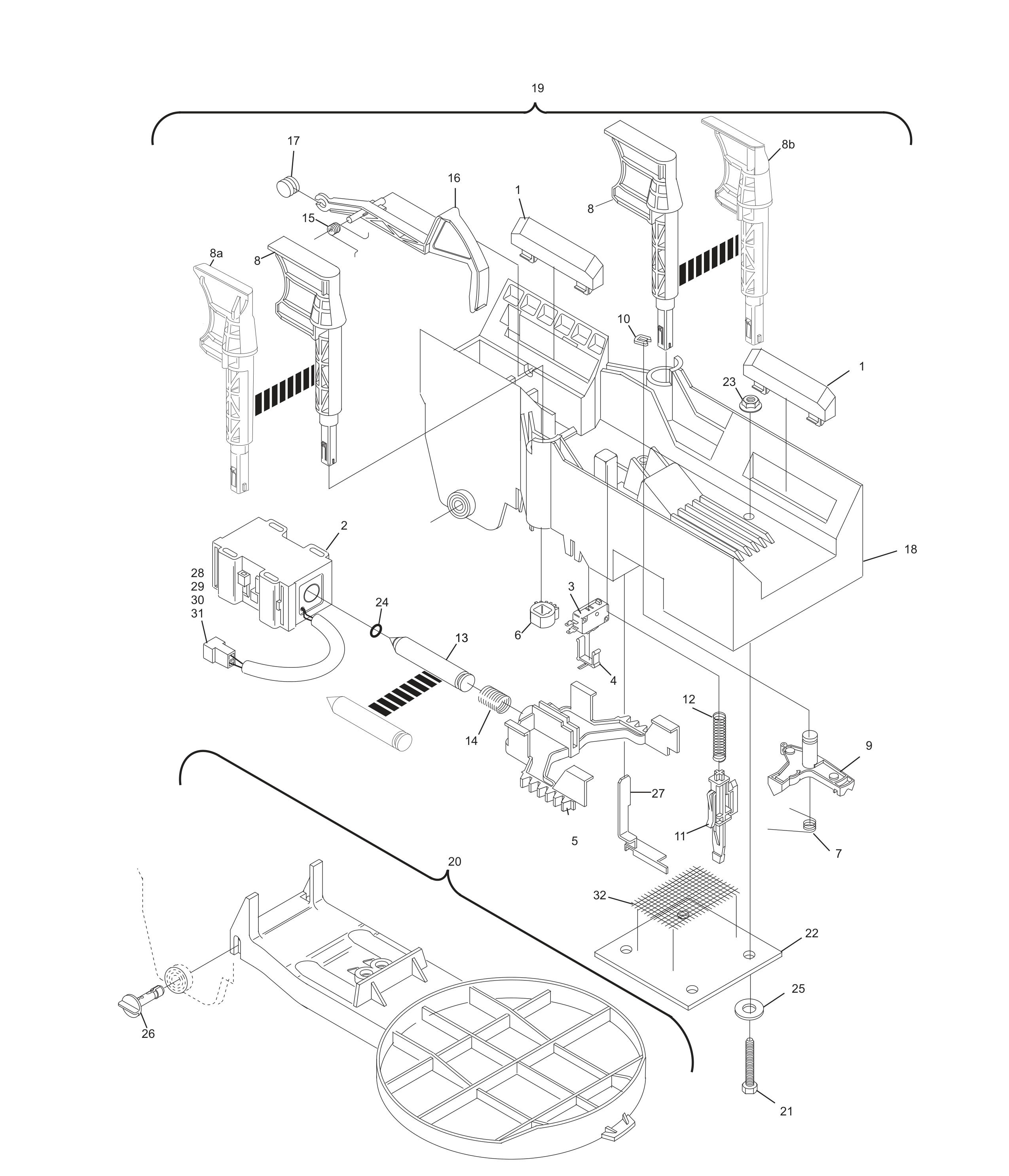

GS-X-CPO Pin Holder Assembly

Позиция	Артикул	Наименование
1	47-050308-004	Damper
2	99-060351-004	Solenoid - Only
3	47-055323-004	Micro Switch
4	47-055001-004	Clip (Micro Switch)
5	47-054983-002	Drive
6	47-054984-004	Gear
7	47-055006-004	Torsion Spring
8	47-054981-002	Pin Gripper - Universal (1 piece)
8	47-277156-000	Pin Gripper Pkg - Includes index numbers 8a. - Pin Gripper - Left Hand (47-057532-009) 8b. - Pin Gripper - Right Hand (47-057533-009)
9	47-054985-001	Switch Lever
10	47-054986-004	Grip Ring
11	47-054988-003	Switch Button
12	47-055008-004	Tension Spring
13	47-055004-004	Solenoid Plunger - With O-ring groove (requires index number 24)
13	47-057534-000	Solenoid Plunger - Without O-ring groove
14	47-054987-004	Solenoid Spring
15	47-055005-004	Tension Spring
16	47-054982-002	Switch Finger
17	47-052124-004	Counter Weight
18	47-054980-001	Pin Holder Housing - Only
18	47-054980-201	Pin Holder w/Damper
19	47-055314-009	Pin Holder Assembly Complete - does not include index Nos. 21, 22, 23, 25, 28, 29, 30, 31,32.
19	47-057535-009	Pin Holder Assembly Complete
20	47-054298-001	Pin Detector Plate w/Pin
21	11-051014-001	Hex Head Cap Screw
22	47-055003-004	Mount Plate
23	11-055500-001	Hex Nut
24	99-090349-004	O-Ring for Plunger
25	11-055961-001	Washer
25	47-861040-001	Washer
26	47-860005-000	Pivot Pin
27	47-055328-003	Connector Clip
28	11-680206-000	Connector - Male (4 pos)
29	11-680302-000	Terminal
29	57-860032-000	Terminal - Male
30	11-680301-000	Terminal
30	57-860031-000	Terminal - Female
31	11-680118-000	Connector - Switch (4 pos)
32	47-055785-004	Steel Mesh
