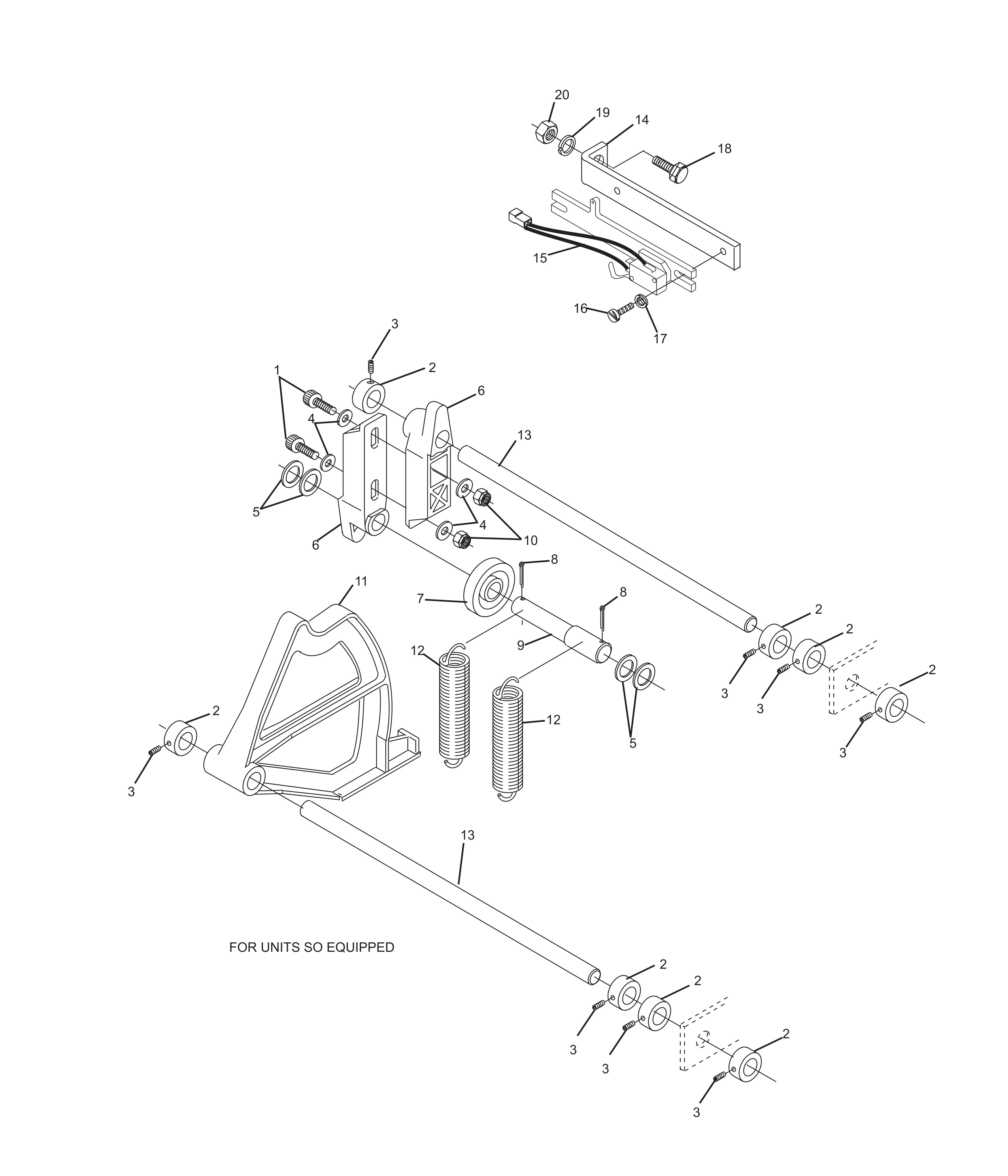

GS-10 Setting Table Switch Cam Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
11-051515-001
|
Socket Hd. Cap Screw |
| 2 |
11-053616-001
|
Stop Collar |
| 3 |
11-052801-001
|
Set Screw |
| 4 |
11-052048-001
|
Flat Washer |
| 5 |
11-052036-001
|
Flat Washer |
| 6 |
47-081650-004
|
Roller Lever |
| 7 |
47-081651-004
|
Roller Wheel |
| 8 |
11-051786-001
|
Cotter Pin |
| 9 |
47-081652-004
|
Roller Shaft |
| 10 |
11-051743-001
|
Locknut |
| 11 |
47-081649-002
|
Cam |
| 12 |
47-081654-004
|
Tension Spring |
| 13 |
47-080744-004
|
Shaft |
| 14 |
47-081771-004
|
Switch Bracket |
| 15 |
99-050230-004
|
Switch (red box) |
| 16 |
11-052201-001
|
Sltd. Machine Screw |
| 17 |
11-052025-001
|
Flat Washer |
| 18 |
11-051038-001
|
Hex Hd. Cap Screw |
| 19 |
11-051770-001
|
Lockwasher |
| 20 |
11-051704-001
|
Hex Nut |
