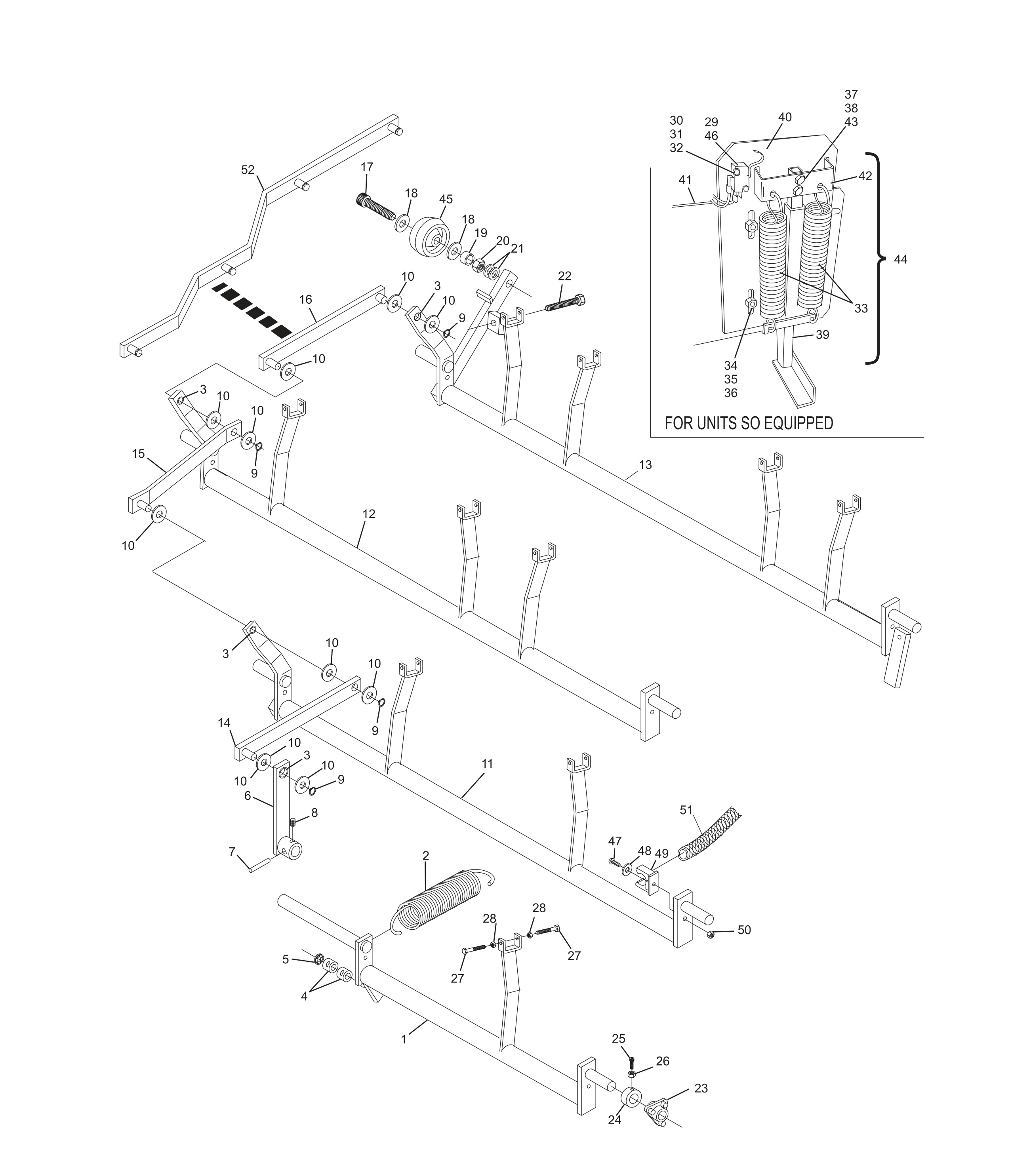

GS-10 - GS-98 Setting Table Swing Shafts
Позиции с кодом N.A.:
- 14 — N.A. — No. 1 Connecting Rod
- 15 — N.A. — No. 2 Connecting Rod
- 16 — N.A. — No. 3 Connecting Rod
- 51 — N.A. — Flexible Plastic Conduit
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-051658-002
|
No. 1 Swing Shaft |
| 2 |
47-052240-004
|
Tension Spring |
| 3 |
99-010124-004
|
Bearing |
| 4 |
47-041813-004
|
Bushing |
| 5 |
11-053480-001
|
Speed Nut |
| 6 |
47-051660-004
|
Pivot Lever |
| 7 |
11-052678-001
|
Rolled Pin |
| 8 |
11-052801-001
|
Set Screw |
| 9 |
11-051851-001
|
Retaining Ring |
| 10 |
11-054101-001
|
Spacer Washer |
| 11 |
47-051657-002
|
No. 2 Swing Shaft |
| 12 |
47-051656-002
|
No. 3 Swing Shaft |
| 13 |
47-051655-002
|
No. 4 Swing Shaft |
| 17 |
11-051545-001
|
Socket Hd. Cap Screw |
| 17 |
47-861010-001
|
Flat Washer |
| 18 |
11-052024-001
|
Flat Washer |
| 19 |
47-051681-004
|
Spacer |
| 20 |
11-051706-001
|
Hex Nut |
| 21 |
11-052032-001
|
Flat Washer |
| 22 |
11-051012-001
|
Hex Hd. Cap Screw |
| 23 |
46-050305-004
|
Plastic Bearing |
| 24 |
11-053619-001
|
Stop Collar |
| 25 |
11-051514-001
|
Socket Hd. Cap Screw |
| 26 |
11-051702-001
|
Hex Nut |
| 27 |
11-051027-001
|
Hex Hd. Cap Screw |
| 28 |
11-051701-001
|
Hex Nut |
| 29 |
47-073534-004
|
Cherry Switch (red box electronics) |
| 30 |
11-053352-001
|
Pan Hd. Screw |
| 31 |
11-052055-001
|
Flat Washer |
| 31 |
47-861013-001
|
Flat Washer |
| 32 |
11-051746-001
|
Locknut |
| 33 |
47-081654-004
|
Tension Spring |
| 34 |
11-052003-001
|
Flat Washer |
| 35 |
11-051010-001
|
Hex Hd. Cap Screw |
| - |
11-051744-001
|
Locknut |
| 37 |
11-051001-001
|
Hex Hd. Cap Screw |
| 38 |
11-051769-001
|
Lockwasher |
| 39 |
47-082398-004
|
Table Jam Switch Actuator Arm |
| 40 |
47-082397-003
|
Switch Plate |
| 41 |
47-082324-003
|
Bracket |
| 42 |
47-082329-004
|
Table Jam Switch Actuator Spring Bracket |
| 43 |
47-082331-004
|
Nut Plate |
| 44 |
47-082323-001
|
Table Jam Switch Assembly Complete |
| 45 |
47-051295-004
|
Roller |
| 46 |
47-243028-004
|
Cherry Switch (silver, consolidated and nexgen electronics box) |
| 47 |
11-052209-001
|
Sltd. Pan Hd. Machine Screw |
| 48 |
11-052021-001
|
Flat Washer |
| 49 |
47-054279-004
|
Conduit Clamp |
| 50 |
11-051741-001
|
Locknut |
| 52 |
47-055116-003
|
One-Piece Connecting Rod |
