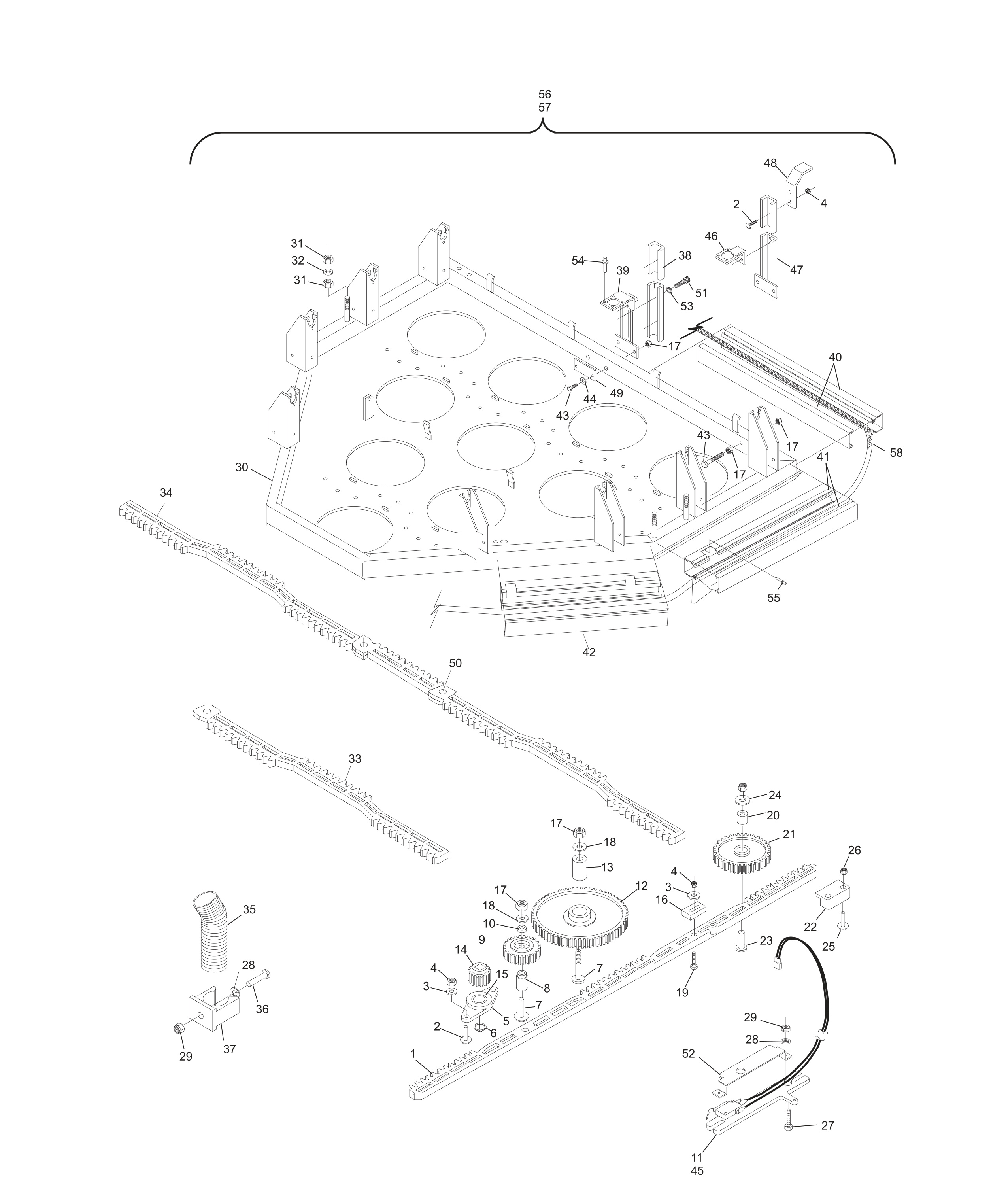

GS-10 - GS-98 Setting Table and Gears
Позиции с кодом N.A.:
- 35 — N.A. — Flexible Plastic Conduit
- 47 — *N.A. — Cable Channel
- 56 — N.A. — Setting Table Assembly Complete (GS-10 and GS-92, includes Pinholders, Spotting Tongs, & Cables)
- 57 — N.A. — Setting Table Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-051635-001
|
Geared Rack |
| 2 |
11-051880-001
|
Truss Hd. Machine Screw |
| 2 |
47-861008-001
|
Truss Hd. Machine Screw |
| 3 |
11-052008-001
|
Flat Washer |
| 4 |
11-051743-001
|
Locknut |
| 5 |
47-051625-004
|
Square Shaft Support |
| 6 |
11-051855-001
|
Retaining Ring |
| 7 |
11-051878-001
|
Truss Hd. Machine Screw |
| 8 |
47-052021-004
|
Spacer Bushing |
| 9 |
47-052020-004
|
Gear |
| 10 |
47-052022-004
|
Spacer Ring |
| 11 |
99-050230-004
|
Switch (red box) |
| 12 |
47-051616-004
|
Gear |
| 13 |
47-051617-004
|
Spacer Bushing |
| 14 |
47-071615-004
|
Square Shaft Gear |
| 15 |
11-430048-000
|
Bearing |
| 16 |
47-051682-004
|
Stop |
| 17 |
11-051744-001
|
Locknut |
| 18 |
11-052003-001
|
Flat Washer |
| 19 |
11-051028-001
|
Hex Hd. Cap Screw |
| 20 |
47-051633-004
|
Spacer Bushing |
| 21 |
47-051632-004
|
Gear |
| 22 |
47-051634-004
|
Holder |
| 23 |
11-051877-001
|
Socket Hd. Machine Screw |
| 24 |
11-052037-001
|
Flat Washer |
| 25 |
11-052362-001
|
Sltd. Pan Hd. Machine Screw |
| 26 |
11-051742-001
|
Locknut |
| 27 |
11-052353-001
|
Sltd. Pan Hd. Machine Screw |
| 27 |
47-861017-001
|
Sltd. Pan Hd. Machine Screw |
| 28 |
11-052021-001
|
Flat Washer |
| 29 |
11-051741-001
|
Locknut |
| 30 |
47-051875-001
|
Setting Table Frame |
| 31 |
11-051707-001
|
Hex Nut |
| 32 |
11-051774-001
|
Lockwasher |
| 33 |
47-051565-002
|
Toothed Rack (front) |
| 34 |
47-053513-009
|
Toothed Rack Complete (center) |
| 36 |
11-052209-001
|
Sltd. Pan Hd. Machine Screw |
| 37 |
47-054279-004
|
Conduit Clamp |
| 38 |
47-052396-004
|
Cable Channel |
| 39 |
47-052395-003
|
Plug Holder Bracket |
| 40 |
47-052425-003
|
Cable Channel |
| 41 |
47-052423-003
|
Cable Channel |
| 42 |
47-052424-003
|
Cable Channel |
| 43 |
11-051085-001
|
Hex Hd. Cap Screw |
| 43 |
47-861003-001
|
Hex Hd. Cap Screw |
| 44 |
11-051770-001
|
Lockwasher |
| 45 |
47-243027-004
|
Switch Complete (silver, consolidated and nexgen electronics box) |
| 45 |
99-050330-003
|
Bracket Only |
| 46 |
47-051203-004
|
Plug Holder |
| 48 |
47-051522-004
|
Cable Guide |
| 49 |
47-051261-004
|
Stiffening Plate |
| 50 |
11-050301-000
|
Countersunk Head Rivet |
| 51 |
11-051509-001
|
Socket Hd. Cap Screw |
| 52 |
47-053812-004
|
Switch Protector |
| 53 |
11-051769-001
|
Lockwasher |
| 54 |
11-053661-000
|
Rivet |
| 55 |
11-053660-000
|
Rivet |
| 55 |
47-861025-000
|
Blind Rivet |
| 58 |
47-243025-003
|
Setting Table Harness Complete (silver box, 4-pin connector) |
