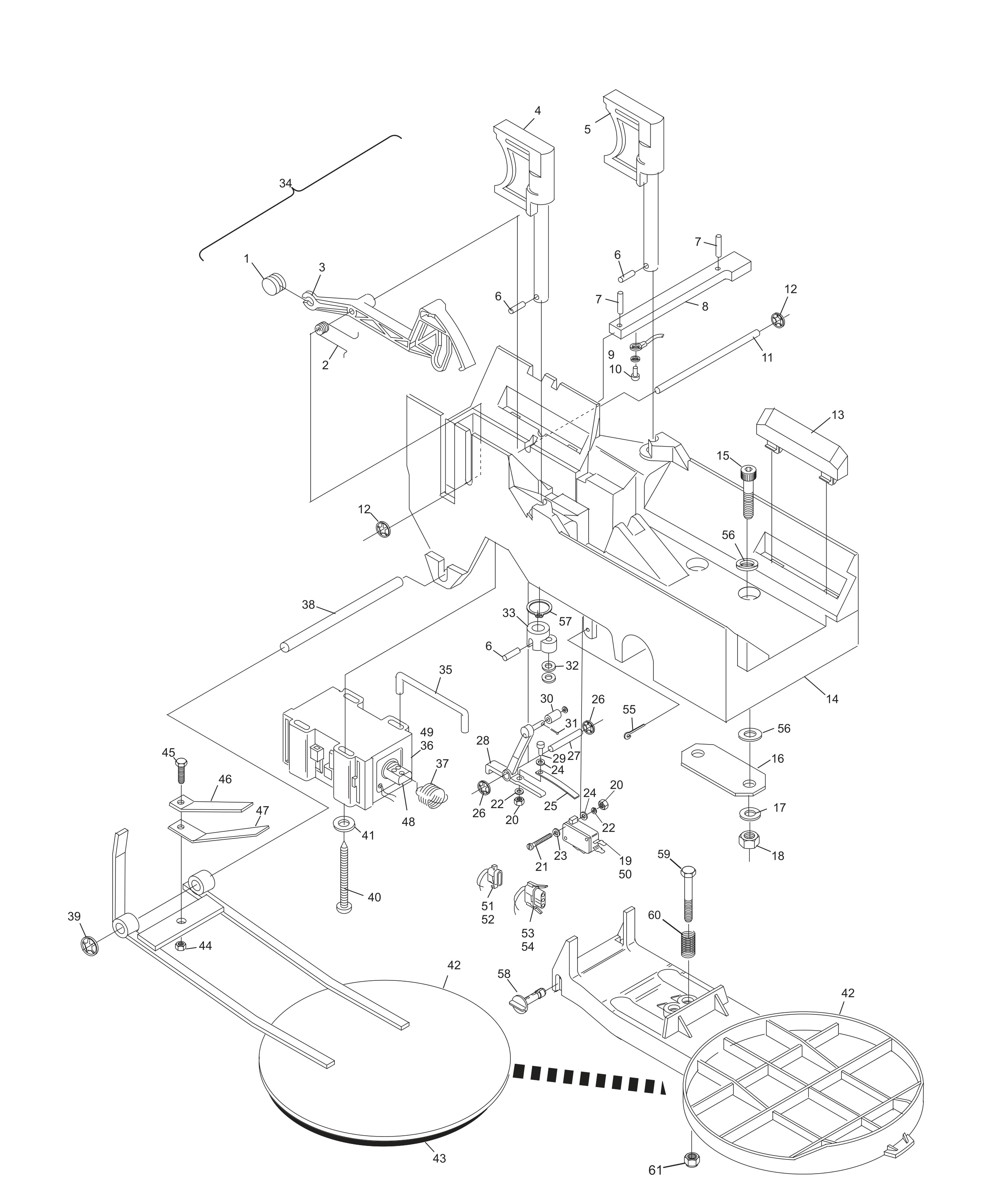

GS-10 and GS-92 Pin Holder Assembly
Позиции с кодом N.A.:
- 14 — N.A. — Pin Holder w /o Dampers
- 42 — N.A. N.A. — Pin Detector Plate w/Rubber (metal)
- 43 — N.A. — Rubber Material Only
- 44 — N.A. — Locknut
- 45 — N.A. — Hex Hd. Cap Screw
- 46 — N.A. — Flat Spring Support
- 47 — N.A. — Flat Spring
- 54 — N.A. — Connector - 3 Pin (red box)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-052124-004
|
Counter Weight |
| 2 |
47-050640-004
|
Tension Spring |
| 3 |
47-050665-003
|
Switch Finger |
| 4 |
47-052440-004
|
R.H. Pin Gripper |
| 5 |
47-052439-004
|
L.H. Pin Gripper |
| 6 |
11-052681-001
|
Rolled Pin |
| 7 |
11-052677-001
|
Roll Pin |
| 8 |
47-050675-004
|
Ground Shaft |
| 9 |
11-051767-001
|
Lockwasher - red box only |
| 10 |
11-053776-001
|
C.R. Pan Hd. Screw - red box only |
| 11 |
47-050668-004
|
Switch Finger Shaft |
| 12 |
11-053476-001
|
Speed Nut |
| 13 |
47-050308-004
|
Damper |
| 14 |
47-054689-009
|
Pin Holder w /Dampers |
| 15 |
11-051535-001
|
Socket Hd. Cap Screw |
| 16 |
47-050676-004
|
Bracket |
| 17 |
11-051770-001
|
Lockwasher |
| 18 |
11-051704-001
|
Hex Nut |
| 19 |
47-052418-004
|
Cherry Switch (red box only) |
| 20 |
11-051708-001
|
Hex Nut |
| 21 |
11-052203-001
|
Sltd. Machine Screw |
| 22 |
11-051766-001
|
Lockwasher |
| 23 |
11-052041-001
|
Flat Washer |
| 24 |
11-052051-001
|
Flat Washer |
| 25 |
47-050639-004
|
Switch Spring |
| 26 |
11-053475-001
|
Speed Nut |
| 27 |
47-050674-004
|
Shaft |
| 28 |
47-050670-004
|
Switch Finger |
| 29 |
11-052205-001
|
Slotted Machine Screw |
| 30 |
47-050671-004
|
Roller Bushing |
| 31 |
11-051802-001
|
Split Pin |
| 32 |
11-052025-001
|
Flat Washer |
| 33 |
46-050300-004
|
Catch |
| 34 |
47-050036-001
|
Pin Holder Complete (red box electrical system) |
| 34 |
47-053850-009
|
Pin Holder Complete (universal electrical system) |
| 35 |
47-050266-004
|
Connector L ink |
| 36 |
99-060218-004
|
Solenoid Complete (red box) |
| 37 |
46-050302-004
|
Tension Spring |
| 38 |
47-050677-004
|
Shaft |
| 39 |
11-053478-001
|
Speed Nut |
| 39 |
47-861050-000
|
Speed Nut |
| 40 |
11-054776-001
|
C.R. Pan Hd. Screw |
| 40 |
47-861037-001
|
C.R. Pan Hd. Screw |
| 41 |
11-052039-001
|
Flat Washer |
| 42 |
47-054298-001
|
Pin Detector Plate w/Pin |
| 48 |
99-060208-004
|
Plunger |
| 49 |
99-060242-004
|
Solenoid Complete (silver, consolidated and nexgen electronics box) |
| 50 |
47-053635-004
|
Cherry Switch (silver, consolidated and nexgen electronics box) |
| 51 |
11-680302-000
|
Terminal |
| 51 |
57-860032-000
|
Terminal - Male |
| 52 |
11-680105-000
|
Connector - 4 Pin (silver box & universal) |
| 53 |
11-697187-000
|
Terminal (red box) |
| 55 |
11-051809-001
|
Split Pin |
| 56 |
11-052003-001
|
Flat Washer |
| 57 |
11-053401-001
|
Snap Ring |
| 58 |
47-860005-000
|
Pivot Pin |
| 59 |
11-051088-001
|
Hex Hd. Cap Screw |
| 60 |
47-054708-004
|
Pin Deflector Spring |
| 61 |
11-051743-001
|
Locknut |
