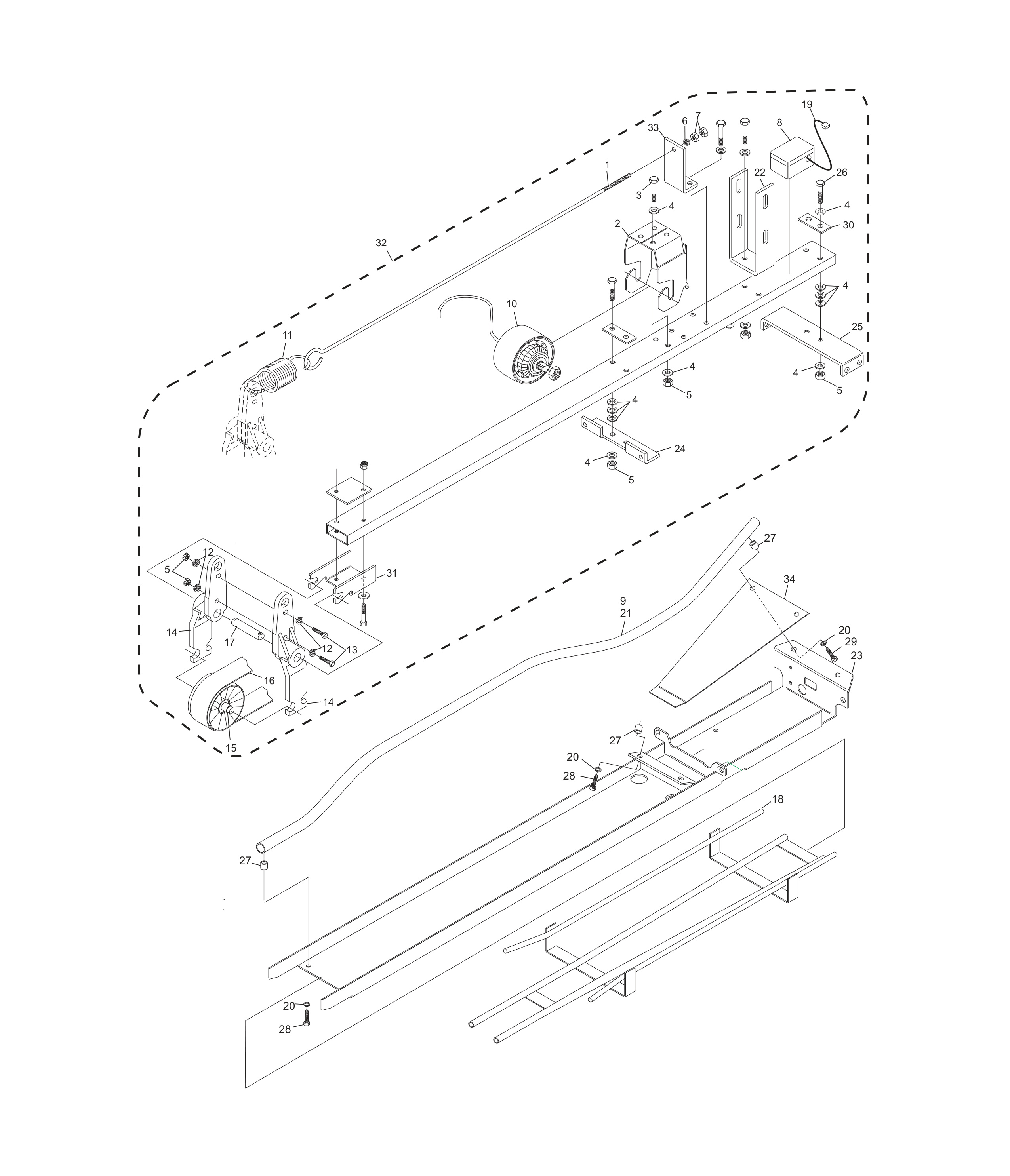

Ball Accelerator
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-031455-001
|
Ball Accelerator Frame |
| 1 |
47-275705-009
|
Ball Accelerator Frame (208/ |
| 1 |
47-275706-009
|
Ball Accelerator Pkg. |
| 2 |
47-031248-004
|
Tension Spring |
| 3 |
47-031440-003
|
Tension Bar |
| 4 |
11-051703-001
|
Hex Nut |
| 5 |
11-053501-000
|
Key |
| 6 |
47-031454-002
|
Pivoting Lever |
| 7 |
47-031456-004
|
Axle |
| 8 |
11-052926-001
|
Flat Hd. Cap Screw |
| 9 |
11-051045-001
|
Hex Hd. Cap Screw |
| 10 |
11-051745-001
|
Locknut |
| 11 |
10-635127-000
|
Flat Belt |
| 12 |
47-035232-002
|
Front Driving Drum Complete - spacers not included |
| 13 |
47-035064-099
|
Rear Driving Drum Complete - spacers not included |
| 14 |
11-051015-001
|
Hex Hd. Cap Screw |
| 15 |
11-052028-001
|
Flat Washer |
| 16 |
11-052017-001
|
Flat Washer |
| 17 |
11-051744-001
|
Locknut |
| 19 |
47-862787-000
|
Protective Cover |
| 20 |
11-052609-001
|
Carriage Bolt |
| 20 |
47-861021-001
|
Carriage Bolt |
| 21 |
11-680925-000
|
Strain Relief (all drum and external brake motors) |
| 21 |
11-055080-000
|
Strain Relief (all disc brake motors) |
| 22 |
68-100192-000
|
Ball Accelerator Motor Cable Assembly |
| 22 |
47-142614-000
|
Cable Assembly (GS Consolidated Electronics) |
| 23 |
47-031309-001
|
Ball Rod |
| 24 |
53-520634-001
|
Metric Transition Track (GS Accelerators to Return Track) |
| 26 |
11-051771-001
|
Lockwasher |
| 27 |
11-052018-001
|
Flat Washer |
| 28 |
47-031261-004
|
Spacer |
| 29 |
11-053577-000
|
Rubber Bumper |
| 30 |
11-051028-001
|
Hex Hd. Cap Screw |
| 31 |
11-051702-001
|
Hex Nut |
| 32 |
47-031603-003
|
Motor Mounting Bracket |
| 33 |
11-051769-001
|
Lockwasher |
| 34 |
11-051704-001
|
Hex Nut |
| 35 |
47-031604-004
|
Shaft |
| 36 |
11-051805-001
|
Split Pin |
| 37 |
47-031307-004
|
Angle Bracket |
| 38 |
11-051743-001
|
Locknut |
| 39 |
99-010123-004
|
Bushing |
| 40 |
47-031453-004
|
Spring Bracket |
| 41 |
99-020163-004
|
Spring |
| 42 |
47-033867-004
|
Motor Drive Pulley |
| 43 |
11-053904-000
|
V-Belt |
| 43 |
11-053907-000
|
V-Belt 60Cy - domestic only) |
| 44 |
11-052804-001
|
Set Screw |
| 45 |
11-051018-001
|
Hex Head Cap Screw |
| 46 |
11-052048-001
|
Flat Washer |
| 47 |
99-040113-002
|
Ball Accelerator Motor |
| 47 |
99-076363-000
|
Distributor Motor w/Integral Brake |
| 47 |
99-040295-004
|
Accelerator Motor |
| 47 |
99-076362-000
|
Distributor Motor AC, 0.37kW) |
| 48 |
47-032500-004
|
Ball Stop (for welded configuration) |
| 49 |
47-032125-003
|
Guard Bracket |
| 50 |
47-032126-003
|
Ball Stop |
| 51 |
47-033504-004
|
Flat Belt Guard Complete |
| 52 |
11-052610-001
|
Carriage Belt |
| 53 |
11-051770-001
|
Lockwasher |
| 54 |
47-022519-000
|
Ball Wipe w/Sleeve |
| 54 |
47-022519-002
|
Sleeve only |
| 55 |
47-030924-003
|
Drive Disc |
