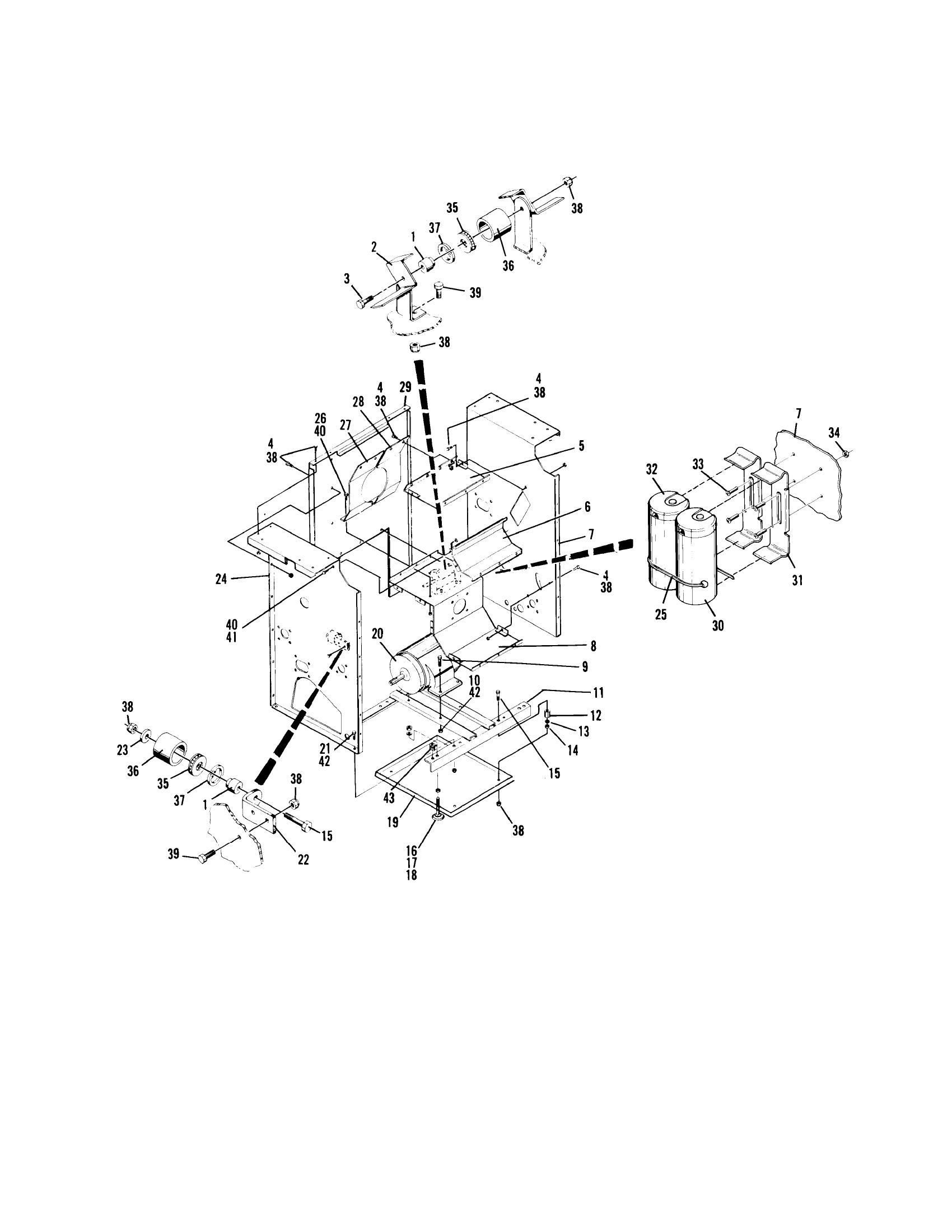

Lustre King Ball Conditioner Cabinet & Frame Assembly
| Поз. | Артикул | Фото | Наименование | Наличие |
|---|---|---|---|---|
| 1 |
11-253008-001
|
|
Plug ButtonN.A. |
Предзаказ |
| 3 |
11-195008-001
|
|
Lockwasher (#8) |
Предзаказ |
| 4 |
14-400230-002
|
|
N.A. Ball Ring - (Brown) |
Предзаказ |
| 6 |
14-400165-000
|
|
Filter Gasket |
Предзаказ |
| 7 |
14-400147-000
|
|
Filter |
Предзаказ |
| 8 |
14-400164-000
|
|
Filter Retainer |
Предзаказ |
| 9 |
11-149003-001
|
|
Wing Nut |
Предзаказ |
| 10 |
14-400167-000
|
|
Cover Gasket (10-7/8”) |
Предзаказ |
| 11 |
14-400166-000
|
|
Cover Gasket (13-3/4”) |
Предзаказ |
| 14 |
11-014091-004
|
|
C.R. Flat Hd. Machine Screw (10-24 x 1-1/8”) |
Предзаказ |
| 16 |
14-400491-000
|
|
R.H. Side Panel Assy. Astro 2 White “2000” Ermine White |
Предзаказ |
| 17 |
14-400289-000
|
|
Locking Stud Bracket |
Предзаказ |
| 18 |
11-014192-004
|
|
C.R. Flat Hd. Machine Screw (5/16-18 x 1-1/4”) |
Предзаказ |
| 19 |
11-170009-001
|
|
Self Locking Nut (5/16-18 x 3/4") |
Предзаказ |
| 22 |
11-170005-001
|
|
Hex Nut (#10-24) |
Предзаказ |
| 25 |
11-190006-001
|
|
Flat Washer (#10) |
Предзаказ |
| 26 |
11-195010-001
|
|
Lockwasher (#10) |
Предзаказ |
| 32 |
14-400492-010
|
|
Decal - “2000” Black/White (25¢ - 50¢ - $1.00) |
Предзаказ |
| 32 |
14-400492-012
|
|
Conversion Decal (50¢ - 75¢ - $1.00) |
Предзаказ |
| 32 |
14-400492-022
|
|
Decal - “2000” Black/ White (50¢ - 75¢ - $1.00) |
Предзаказ |
| 35 |
11-081010-001
|
|
Self Tapping Hex Hd. Washer Screw (#8 x 3/8”) |
Предзаказ |
| 36 |
14-400405-010
|
|
Decal (Blue/White) |
Предзаказ |
| 38 |
11-010081-001
|
|
Hex Hd. Cap Screw (10-24 x 3/4”) |
Предзаказ |
| 39 |
10-386143-000
|
|
Spacer (25/64 x 1/4) |
Предзаказ |
| 41 |
11-640051-000
|
|
Lock (Chicago) |
Предзаказ |
| 43 |
11-001182-001
|
|
Hex Hd. Screw (1/4-20 x 3/4”) |
Предзаказ |
| - |
11-190010-001
|
|
Flat Washer (1/4) |
Предзаказ |
| 45 |
11-170007-001
|
|
Locknut |
Предзаказ |
| 46 |
14-400250-000
|
|
Buffing Wheel Adjustment Template |
Предзаказ |
| 47 |
14-400247-000
|
|
Roller Adjustment Template |
Предзаказ |
| 49 |
11-082096-001
|
|
Self Tapping C.R. Rd. Hd. Screw (#10 x 1”) |
Предзаказ |
| 50 |
14-400272-000
|
|
Grommet |
Предзаказ |
| 52 |
11-001060-001
|
|
Hex Hd. Cap Screw (10-24 x 5/8”) |
Предзаказ |
| 53 |
11-125004-001
|
|
Hex Nut (#10-24) |
Предзаказ |
| 56 |
10-386180-000
|
|
Spacer (3/16 x 1/4) |
Предзаказ |
