Brunswick Bowling Service Parts 2023 Section L: Power Lift Hoods Frameworx Hood

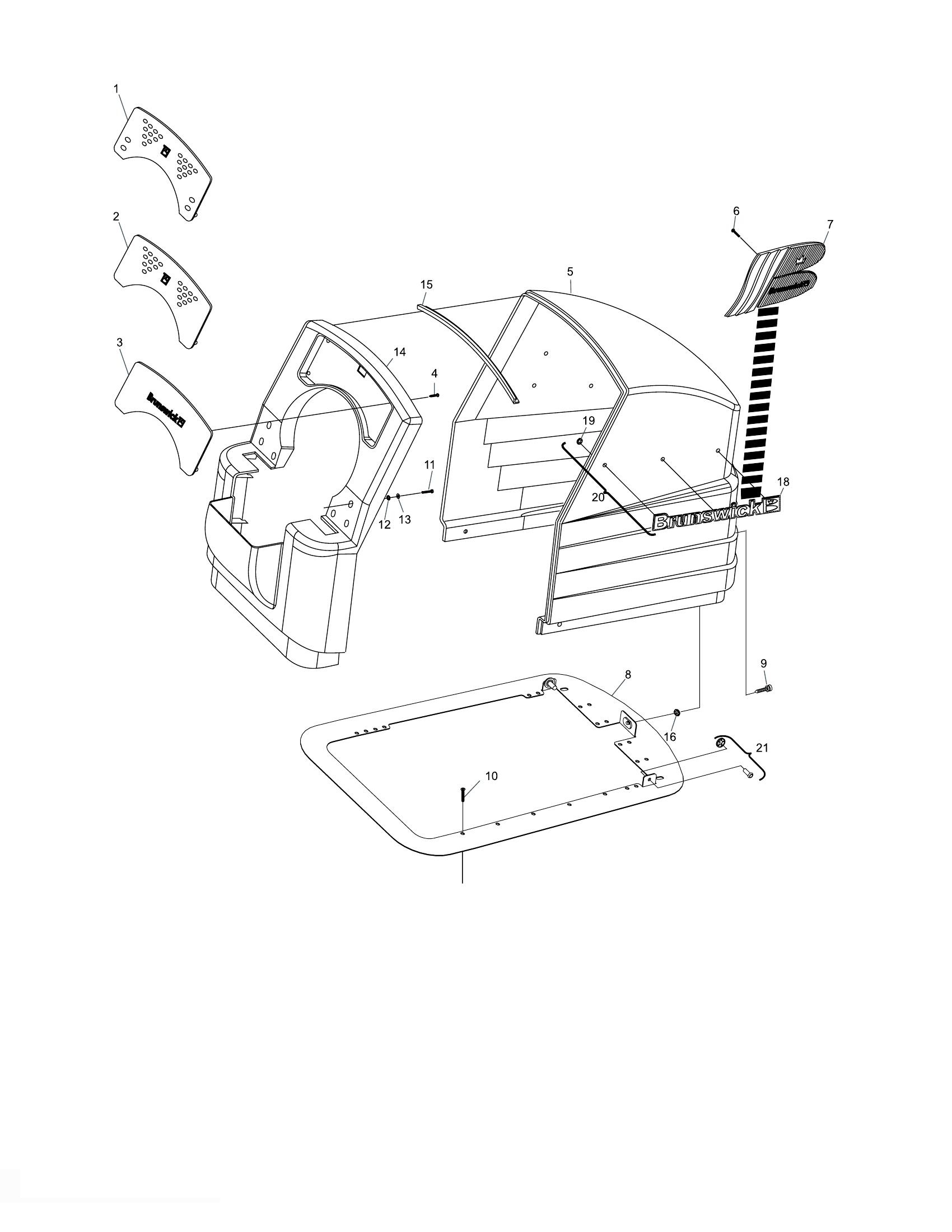

Frameworx Hood

Позиция:

Поз.	Артикул	Наименование	Наличие
1	53-400052-000	Player Control Station	Предзаказ
2	53-400053-000	Pinfall Display	Предзаказ
3	53-400009-XXX	Throat Decorative Insert (Dark Gray w/Silver)	Предзаказ
3	53-400009-229	Throat Decorative Insert (Graphite w/Silver)	Предзаказ
3	53-400009-205	Throat Decorative Insert (Black w/Black Logo)	Предзаказ
3	53-400027-002	Throat Decorative Insert (Black) Less Color	Предзаказ
4	11-082685-001	Pan Hd. C.R. Tap Screw (#12-14 x 1/2”)	Предзаказ
5	53-861034-002	Ball Return Hood Assembly Silver	Предзаказ
5	53-860937-000	Ball Return Hood Assembly (Gray) includes Index No. 15	Предзаказ
5	53-861034-205	Ball Return Hood Assembly (Black) includes Index No. 15	Предзаказ
6	11-082683-001	Type “B” C.R. Pan Hd. Screw (#10-16 x 3/8”)	Предзаказ
7	53-400048-XXX	Side Logo Assembly	Предзаказ
7	53-400048-227	Side Logo Assembly (Black)	Предзаказ
8	53-866035-000	S.O. Flange - Ball Lift Hood includes Index Nos. 10, 9, and 16 (Dark Gray)	Предзаказ
8	53-866035-003	Flange - Ball Lift Hood includes Index Nos. 10, 9, and 16 (Graphite)	Предзаказ
9	11-690544-000	Knurled Captive Screw (1-1/2”)	Предзаказ
10	11-081201-000	Robertson Screw (#10 x 1-1/2”)	Предзаказ
11	11-001182-001	Hex Hd. Screw (1/4-20 x 3/4”)	Предзаказ
12	11-195014-001	Lockwasher (1/4)	Предзаказ
13	11-191010-001	Flat Washer (1/4)	Предзаказ
15	53-400044-000	Hood Lip Trim	Предзаказ
16	11-690545-000	Captive Screw Retainer	Предзаказ
17	53-861090-XXX	Ball Return Color Kit (includes Index Nos. 3 and 7, wear strip, ball rail extrusion and decal vent. Not Illustrated	Предзаказ
17	53-861122-002	Color Kit (Graphite w/Silver)	Предзаказ
18	53-400092-000	Brunswick Side Logo Assembly (designed for Black Hoods and Silver Hoods only) - See Index #20	Предзаказ
19	11-532001-009	Retaining Clip - See Index #20	Предзаказ
20	53-860648-000	Pkg. - Brunswick Side Plate Logo part not sold separately	Предзаказ
21	53-520723-000	Ball Lift Hood Retainer & Clip (Pkg. of 2)	Предзаказ
