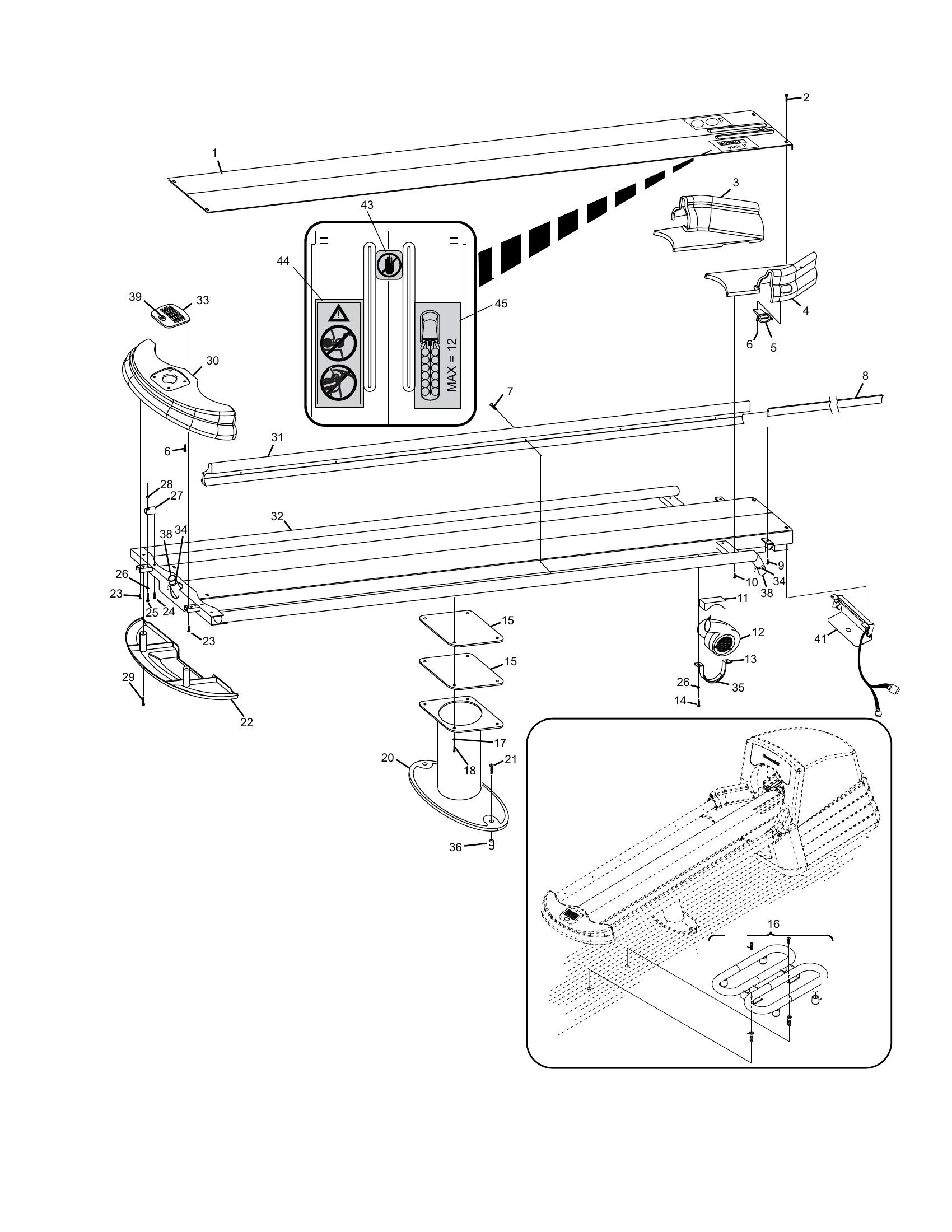

Brunswick Bowling Service Parts 2023 Section K: Ball Racks 25 24 Frameworx Ball Return

25 24 Frameworx Ball Return

Снято с продажи (N.A.):

Поз. 1 — 53-400030-000 Ball Track
Поз. 5 — 53-861057-000 Reset Switch w/Bracket Assembly (Dark Gray)
Поз. 6 — 11-082683-001 P.H.C.R. Self Tapping Screw Type “B” (#10-16 x 3/8\")
Поз. 9 — 11-082705-001 P.H.C.R. Self Tapping Screw Type “B” (#12-14 x 5/8\")
Поз. 15 — 53-400038-000 Spacer Plate
Поз. 32 — Weldment - Ball Track
Поз. 33 — 53-400055-000 Vent - Ball Rack (Dark Gray)
Поз. 34 — Wire Tie
Поз. 41 — 53-861135-000 Frameworx Ball Lift Safety Switch
Поз. 42 — 11-095011-000 Hex Drive Insert - Wood (3/8-16 x 1.181”)

Дополнительные артикулы:

Поз. 1 — 53-400030-000 Ball Track / 53-861124-000 N.A. Pkg. Ball Track w/Warning Labels
Поз. 3 — 53-400002-000 N.A. L.H. Exit Track Only (Light Gray) / 53-400097-000 L.H. Exit Track Only (Light Gray) / 53-400002-003 L.H. Exit Track Only (Graphite) / 53-400097-003 L.H. Exit Track Only (Graphite) / 53-400097-205 L.H. Exit Track Only (Black) / 53-400063-000 L.H. Exit Track w/Reset Switch Assy (Light Gray) / 53-400063-003 L.H. Exit Track w/Reset Switch Assy (Graphite)
Поз. 4 — 53-400003-000 N.A. R.H. Exit Track Only (Light Gray) / 53-400099-000 R.H. Exit Track Only (Light Gray) / 53-400003-003 N.A. R.H. Exit Track Only (Graphite) / 53-400099-003 R.H. Exit Track Only (Graphite) / 53-400099-205 R.H. Exit Track Only (Black) / 53-400062-000 R.H. Exit Track w/Reset Switch Assy (Light Gray) / 53-400062-003 R.H. Exit Track w/Reset Switch Assy (Graphite)
Поз. 5 — 53-861057-000 Reset Switch w/Bracket Assembly (Dark Gray) / 53-861127-000 Reset Switch w/Bracket Assembly (Dark Gray) / 53-861057-100 N.A. Reset Switch w/Bracket Assembly (Silver) / 53-861127-100 Reset Switch w/Bracket Assembly (Silver)
Поз. 12 — 53-861059-115 Hand Dryer Fan - 115 VAC / 53-861059-230 Hand Dryer Fan - 230 VAC
Поз. 16 — 53-861147-606 Frameworx Ball Return Storage Rack - 6-Ball (Dark grey) / 53-861147-608 Frameworx Ball Return Storage Rack - 8-Ball (Dark grey) / 53-861133-606 Frameworx Ball Return Storage Rack - 6-Ball (Silver) / 53-861133-608 Frameworx Ball Return Storage Rack - 8-Ball (Silver)
Поз. 29 — 11-010807-000 P.H.C.R. Self Tapping 1/2”) (Light Grey) / 53-400270-000 Ball Return End Cap - Top (Light Grey) / 53-400056-003 Ball Return End Cap - Top (Graphite) / 53-400270-003 Ball Return End Cap - Top / 53-400270-205 Ball Return End Cap - Top
Поз. 33 — 53-400055-000 Vent - Ball Rack (Dark Gray) / 53-400278-000 Vent - Ball Rack (Dark Gray) / 53-400055-003 Vent - Ball Rack (Graphite) / 53-400278-003 Vent - Ball Rack (Graphite)
Поз. 40 — 53-861090-XXX Ball Return Color Kit Not Illustrated / 53-861122-002 Color Kit (Graphite) Not Illustrated
Поз. 41 — 53-861135-000 Frameworx Ball Lift Safety Switch / 53-861149-000 Frameworx Ball Lift Safety Switch

Позиция:

Поз.	Артикул	Наименование	Наличие
1	53-400030-000	Ball Track	Предзаказ
1	53-861124-000	N.A. Pkg. Ball Track w/Warning Labels	Предзаказ
2	11-006088-001	Pan Hd. Hex Screw (#10-24 x 1/2")	Предзаказ
3	53-400002-000	N.A. L.H. Exit Track Only (Light Gray)	Предзаказ
3	53-400097-000	L.H. Exit Track Only (Light Gray)	Предзаказ
3	53-400002-003	L.H. Exit Track Only (Graphite)	Предзаказ
3	53-400097-003	L.H. Exit Track Only (Graphite)	Предзаказ
3	53-400097-205	L.H. Exit Track Only (Black)	Предзаказ
3	53-400063-000	L.H. Exit Track w/Reset Switch Assy (Light Gray)	Предзаказ
3	53-400063-003	L.H. Exit Track w/Reset Switch Assy (Graphite)	Предзаказ
4	53-400003-000	N.A. R.H. Exit Track Only (Light Gray)	Предзаказ
4	53-400099-000	R.H. Exit Track Only (Light Gray)	Предзаказ
4	53-400003-003	N.A. R.H. Exit Track Only (Graphite)	Предзаказ
4	53-400099-003	R.H. Exit Track Only (Graphite)	Предзаказ
4	53-400099-205	R.H. Exit Track Only (Black)	Предзаказ
4	53-400062-000	R.H. Exit Track w/Reset Switch Assy (Light Gray)	Предзаказ
4	53-400062-003	R.H. Exit Track w/Reset Switch Assy (Graphite)	Предзаказ
5	53-861057-000	Reset Switch w/Bracket Assembly (Dark Gray)	Предзаказ
5	53-861127-000	Reset Switch w/Bracket Assembly (Dark Gray)	Предзаказ
6	11-082683-001	Type “B” C.R. Pan Hd. Screw (#10-16 x 3/8”)	Предзаказ
7	11-010808-000	Flat Hd. C.R. Self-Tapping Screw (#10-24 x 1/2")	Предзаказ
8	53-400057-XXX	Wear Strip	Предзаказ
9	11-082705-001	P.H.C.R. Self Tapping Screw Type “B” (#12-14 x 5/8")	Предзаказ
10	11-082701-001	P.H.C.R. Self Tapping Screw Type “B” (#12-14 x 3/8")	Предзаказ
11	53-400036-000	Blower Mount - Upper	Предзаказ
12	53-861059-115	Hand Dryer Fan - 115 VAC	Предзаказ
12	53-861059-230	Hand Dryer Fan - 230 VAC	Предзаказ
13	53-400024-000	Fan Mounting Bracket	Предзаказ
14	11-001182-001	Hex Hd. Screw (1/4-20 x 3/4”)	Предзаказ
15	53-400038-000	Spacer Plate	Предзаказ
17	11-195015-001	Lockwasher (5/16)	Предзаказ
18	11-001263-001	Hex Hd. Cap Screw (5/16-18 x 7/8")	Предзаказ
19	11-651103-000	Rubber Foot (Pkg. of 4)	Предзаказ
20	53-400018-000	Leg Weldment (Dark Gray)	Предзаказ
24	11-082687-001	Screw Pan Head C.R (10-16 x 5/8”)	Предзаказ
25	11-001184-001	Screw Hex Head (1/4-20 x 1")	Предзаказ
26	11-198005-001	External Tooth Lockwasher	Предзаказ
27	53-400010-000	Ball Bumper	Предзаказ
28	11-125100-001	Hex Nut (1/4-20)	Предзаказ
29	53-400270-000	Ball Return End Cap - Top (Light Grey)	Предзаказ
29	53-400056-003	Ball Return End Cap - Top (Graphite)	Предзаказ
29	53-400270-003	Ball Return End Cap - Top	Предзаказ
29	53-400270-205	Ball Return End Cap - Top	Предзаказ
29	11-010807-000	Screw C.R. Pan Head (#10-32 x 1/2”)	Предзаказ
31	53-861026-XXX	Ball Rail Extrusion	Предзаказ
32	N.A.	Weldment - Ball Track	Предзаказ
33	53-400055-000	Vent - Ball Rack (Dark Gray)	Предзаказ
33	53-400278-000	Vent - Ball Rack (Dark Gray)	Предзаказ
33	53-400055-003	Vent - Ball Rack (Graphite)	Предзаказ
33	53-400278-003	Vent - Ball Rack (Graphite)	Предзаказ
34	N.A.	Wire Tie	Предзаказ
35	53-400039-000	Blower Mount - Lower	Предзаказ
36	11-095011-000	Wood Insert (3/8-16)	Предзаказ
37	53-860988-000	Small Ball Bumper Conversion Kit - Not Illustrated	Предзаказ
38	53-400041-000	Hand Dryer Hose	Предзаказ
39	53-400043-102	Decal Vent (Light Gray)	Предзаказ
40	53-861090-XXX	Ball Return Color Kit (includes Index Nos. 3 and 7, wear strip, ball rail extrusion and decal vent. Not Illustrated	Предзаказ
40	53-861122-002	Color Kit (Graphite w/Silver)	Предзаказ
41	53-861135-000	Frameworx Ball Lift Safety Switch	Предзаказ
43	53-400067-000	“NO HANDS” Decal Surface 10-Pin Ball Rack	Предзаказ
44	53-400487-000	Label - No Hands In Ball Return	Предзаказ
45	53-400494-000	Reset Switch, Cap	Предзаказ
