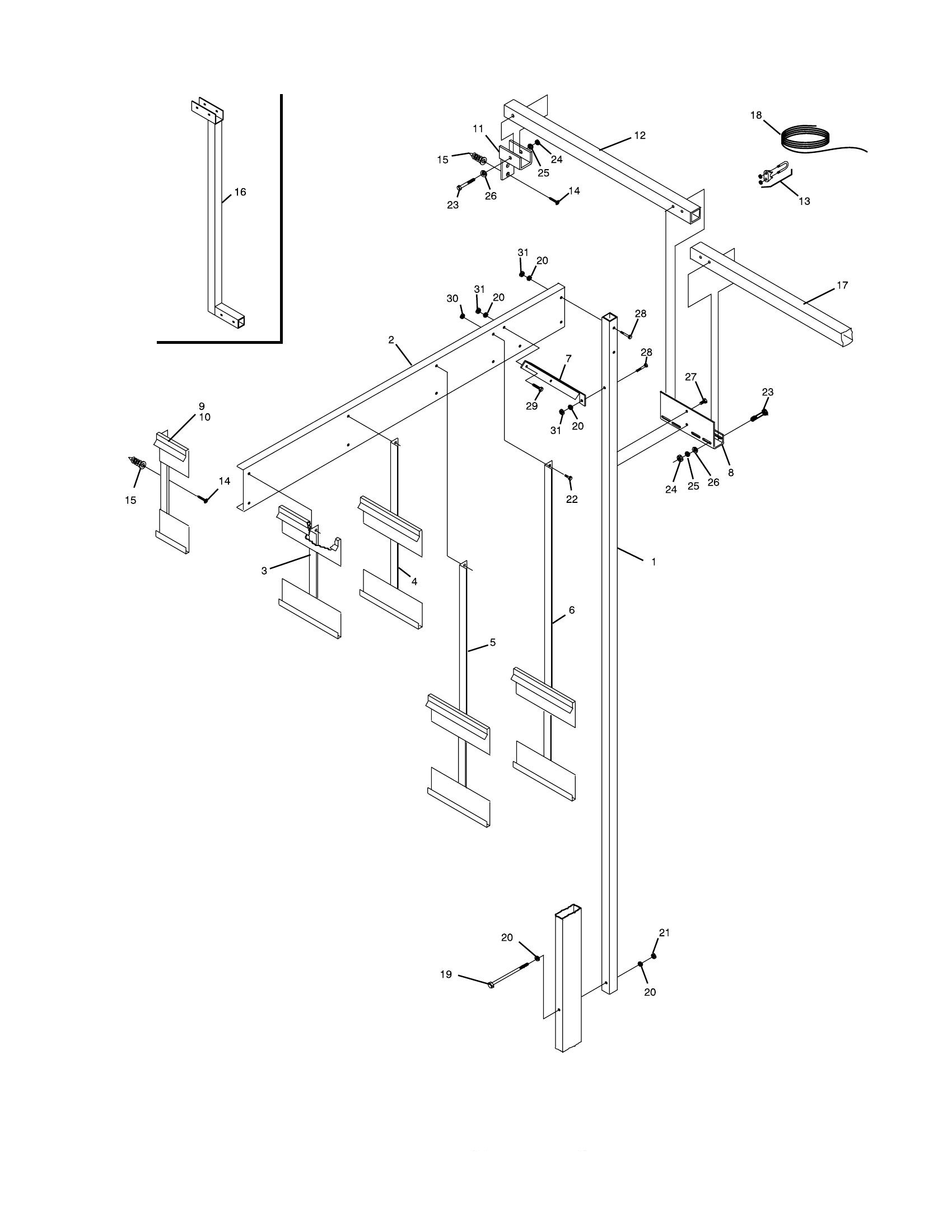

Frameworx Masking Unit - One Panel Upper
| Поз. | Артикул | Фото | Наименование | Наличие |
|---|---|---|---|---|
| 1 |
11-001342-001
|
|
Hex. Hd. Cap Screw (3/8-16 x 3/4") |
Предзаказ |
| 2 |
11-001353-001
|
|
Hex. Hd. Cap Screw (3/8-16 x 2-1/4") |
Предзаказ |
| 3 |
53-300030-000
|
|
Corner Brace |
Предзаказ |
| 4 |
53-300093-000
|
|
Cross Brace Support |
Предзаказ |
| 5 |
53-300255-000
|
|
Vertical Extension |
Предзаказ |
| 6 |
11-082564-000
|
|
Pan Hd. C.R. Tapping Screw (#10 x 1") |
Предзаказ |
| 7 |
53-300256-000
|
|
Horizontal Extension |
Предзаказ |
| 8 |
11-001178-001
|
|
Hex. Hd. Cap Screw (1/4-20 x 1/2" ) |
Предзаказ |
| 9 |
11-170007-001
|
|
Locknut |
Предзаказ |
| 10 |
53-300260-000
|
|
Lower Arm Weldment Assembly |
Предзаказ |
| 11 |
53-300259-000
|
|
Upper Arm Weldment Assembly |
Предзаказ |
| 12 |
11-001397-001
|
|
Hex Hd. Cap Screws (3/8-16 x 5") |
Предзаказ |
| 13 |
53-300277-000
|
|
Graphic U-Channel - Long |
Предзаказ |
| 14 |
53-300278-000
|
|
Graphic U-Channel - Short |
Предзаказ |
| 15 |
53-300271-000
|
|
Sidewall Bracket - Lower Left |
Предзаказ |
| 15 |
53-300273-000
|
|
Sidewall Bracket - Lower Right |
Предзаказ |
| 16 |
53-300272-000
|
|
Sidewall Bracket - Upper Left |
Предзаказ |
| 16 |
53-300274-000
|
|
Sidewall Bracket - Upper Right |
Предзаказ |
| 17 |
11-001193-001
|
|
Hex Hd. Cap Screw (1/4 x 2-1/4”) |
Предзаказ |
| 18 |
53-300099-000
|
|
Cross Brace End Support |
Предзаказ |
| 19 |
53-300104-000
|
|
Cross Brace Horizontal Extension |
Предзаказ |
| 20 |
53-300078-000
|
|
Cross Brace |
Предзаказ |
| 21 |
11-191014-001
|
|
Flat Washer (3/8) |
Предзаказ |
| 22 |
11-112060-000
|
|
EZ-Anchor (Wall Anchor) |
Предзаказ |
| 23 |
11-900075-000
|
|
Black Vinyl Tape (9/16" x 2-1/2" LG.) |
Предзаказ |
| 24 |
11-010907-001
|
|
Self-Tapping Screw (#14 x 3/4") |
Предзаказ |
| 25 |
11-190010-001
|
|
Flat Washer (1/4) |
Предзаказ |
| 26 |
11-125007-001
|
|
Hex Nut (1/4-20) |
Предзаказ |
| 27 |
11-195014-001
|
|
Lockwasher (1/4) |
Предзаказ |
| 28 |
11-125104-001
|
|
Hex Nut (3/8-16) |
Предзаказ |
