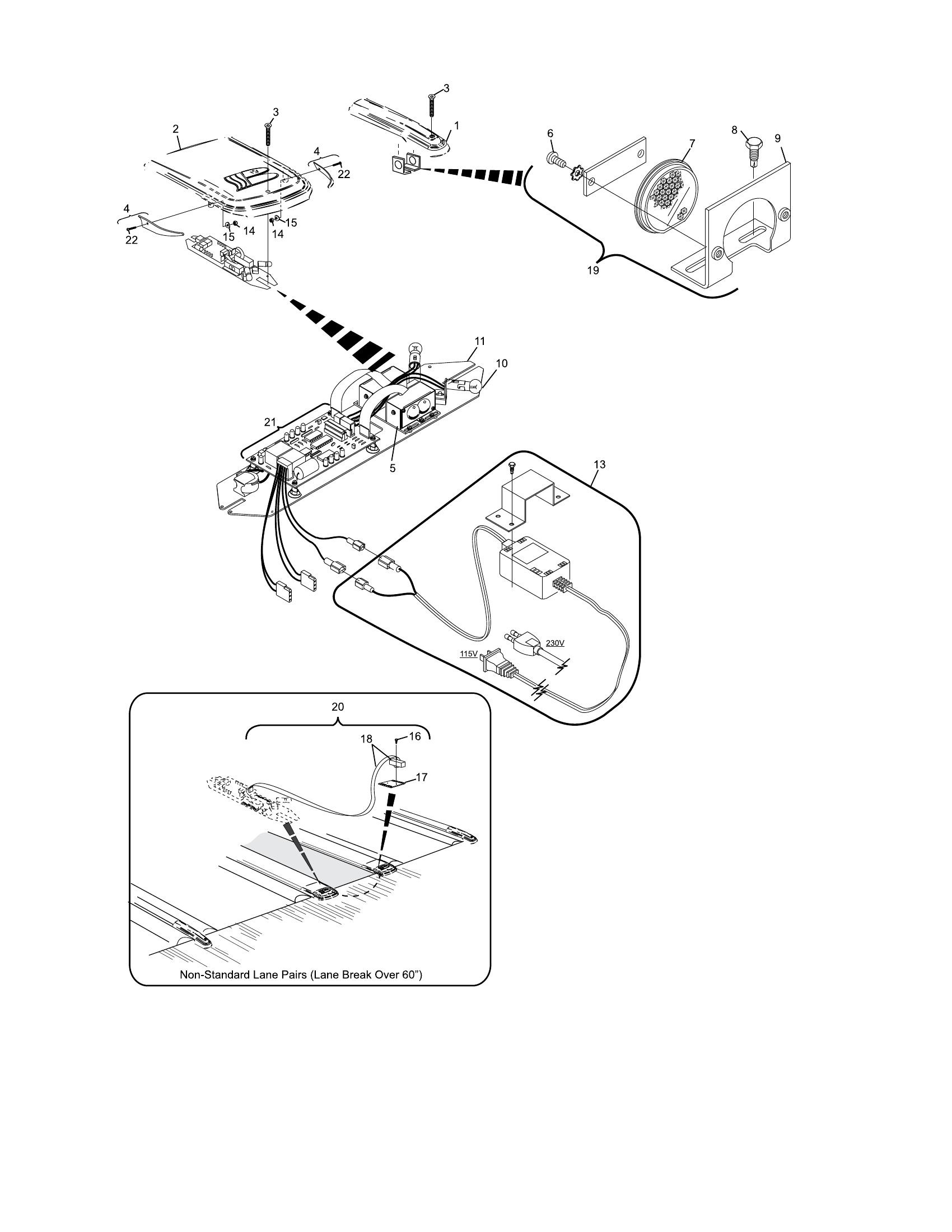

Brunswick Bowling Service Parts 2023 Section G: Tel-E-Foul Frameworx Tel-E-Foul

Frameworx Tel-E-Foul

Снято с продажи (N.A.):

Поз. 1 — 84-860551-000 Division Tel-E-Foul Cover Pkg.
Поз. 2 — 84-860550-000 Return Tel-E-Foul Cover w/Hardware Pkg.
Поз. 3 — 11-040165-001 Flat Head Robertson Screw (#14-3-1/2\")
Поз. 4 — 84-200249-000 Lens Cover Set (right-hand and left-hand) Pkg.
Поз. 6 — N.A. Pan Head Screw (#6-32 x 5/16\")
Поз. 8 — N.A. Drill Point Screw (#8 x 1-1/4\")
Поз. 9 — N.A. Reflector to Division Mounting Bracket
Поз. 11 — 53-861068-000 Tel-E-Foul Assembly
Поз. 13 — 53-860326-230 Tele-E-Foul Transformer - 230VAC, 50 Hz
Поз. 16 — Drill Point Screw (#6-32 x 1-1/4\")
Поз. 17 — 53-600177-002 Sensor Mounting Plate
Поз. 18 — 53-861069-002 Remote Sensor Cable Assembly (120\")
Поз. 21 — 53-600179-001 Tel-E-Foul PCB

Дополнительные артикулы:

Поз. 1 — 84-860551-000 Division Tel-E-Foul Cover Pkg. / 84-860602-000 Frameworx Tel-E-Foul Cover w/Hardware Pkg.(light grey non-GID) / 84-860602-205 Frameworx Tel-E-Foul Cover w/Hardware Pkg.(black non-GID)
Поз. 2 — 84-860550-000 Return Tel-E-Foul Cover w/Hardware Pkg. / 84-860603-000 Return Tel-E-Foul Cover w/Hardware Pkg. / 84-860769-000 Return Tel-E-Foul Cover w/Hardware Pkg. -(light grey non-GID) / 84-860769-205 Return Tel-E-Foul Cover w/Hardware Pkg. -(black non-GID)
Поз. 3 — 11-040165-001 Flat Head Robertson Screw (#14-3-1/2\") / 11-081202-000 Flat Head Robertson Screw (1/4-10 x 3-1/2”)
Поз. 4 — 84-200249-000 Lens Cover Set (right-hand and left-hand) Pkg. / 84-860769-000 Return Cover, Lens and Mounting Hardware Pkg. / 84-860770-000 Lens Cover and Mounting Hardware Pkg.
Поз. 11 — 53-861068-000 Tel-E-Foul Assembly / 53-861076-000 Brunswick Tel-E-Foul Assembly Pkg.
Поз. 13 — 53-860326-230 Tele-E-Foul Transformer - 230VAC, 50 Hz / 53-860629-230 Tele-E-Foul Transformer - 230VAC, 50 Hz w/ Power Cord / 53-860327-115 Tele-E-Foul Transformer - 115VAC, 60 Hz / 53-860628-115 Tele-E-Foul Transformer - 115VAC, 60 Hz, w/ Power Cord / 53-860326-100 Tele-E-Foul Transformer - 100VAC, 50 Hz, w/IEC Connector, Bracket and Hardware
Поз. 17 — 53-600177-002 Sensor Mounting Plate / 53-600181-002 Sensor Mounting Plate
Поз. 21 — 53-600179-001 Tel-E-Foul PCB / 53-600181-005 Tel-E-Foul PCB

Позиция:

Поз.	Артикул	Наименование	Наличие
1	84-860551-000	Division Tel-E-Foul Cover Pkg.	Предзаказ
1	84-860602-000	Frameworx Tel-E-Foul Cover w/Hardware Pkg.(light grey non-GID)	Предзаказ
2	84-860550-000	Return Tel-E-Foul Cover w/Hardware Pkg.	Предзаказ
2	84-860603-000	Return Tel-E-Foul Cover w/Hardware Pkg.	Предзаказ
2	84-860769-000	Return Tel-E-Foul Cover w/Hardware Pkg. -(light grey non-GID)	Предзаказ
3	11-040165-001	Flat Head Robertson Screw (#14-3-1/2")	Предзаказ
3	11-081202-000	Robertson Drive Screw (#1/4-10 x 3-1/2")	Предзаказ
4	84-200249-000	Lens Cover Set (right-hand and left-hand) Pkg.	Предзаказ
4	84-860769-000	Return Tel-E-Foul Cover w/Hardware Pkg. -(light grey non-GID)	Предзаказ
5	53-600181-003	Standard Sensor Assembly	Предзаказ
6	N.A.	N.A. Pan Head Screw (#6-32 x 5/16")	Предзаказ
7	53-600101-000	Отражатель	Предзаказ
8	N.A.	N.A. Drill Point Screw (#8 x 1-1/4")	Предзаказ
9	N.A.	N.A. Reflector to Division Mounting Bracket	Предзаказ
10	11-675513-002	Lamp (#90 Clear)	Предзаказ
11	53-861068-000	Tel-E-Foul - Complete (115/230 Volt 50/60 Hz)	Предзаказ
11	53-861076-000	Tel-E-Foul	Предзаказ
13	53-860628-115	Pkg. Transformer Kit w/Bracket and Hardware	Предзаказ
13	53-860326-230	Pkg. Transformer Kit w/IEC Connector, Bracket and Hardware 100VAC, 50 Hz (for Japanese market)	Предзаказ
13	53-860629-230	Transformer Pkg. - 230VAC, 50 Hz w/Power Cord	Предзаказ
13	53-860327-115	Transformer - 115VAC, 60 Hz	Предзаказ
13	53-860326-100	Transformer - 100VAC, 50 Hz	Предзаказ
14	11-170000-001	Hex Nut (#4-40)	Предзаказ
15	11-195001-000	N.A, Formed Washer (#4)	Предзаказ
16	N.A.	Drill Point Screw (#6-32 x 1-1/4")	Предзаказ
17	53-600177-002	Sensor Mounting Plate	Предзаказ
17	53-600181-002	Sensor Mounting Plate	Предзаказ
18	53-861069-002	Remote Sensor Cable Assembly (120")	Предзаказ
19	53-860299-000	Upgrade to Tel-E-Foul Reflector Pkg.	Предзаказ
20	53-861069-000	Remote Sensor Kit	Предзаказ
21	53-600179-001	Tel-E-Foul PCB	Предзаказ
21	53-600181-005	Tel-E-Foul PCB	Предзаказ
22	11-006010-000	Screw (#4-40 x 1”)	Предзаказ
