Brunswick Bowling Service Parts 2023 Section E: Furniture Frameworx Two Seat Rail (Short)

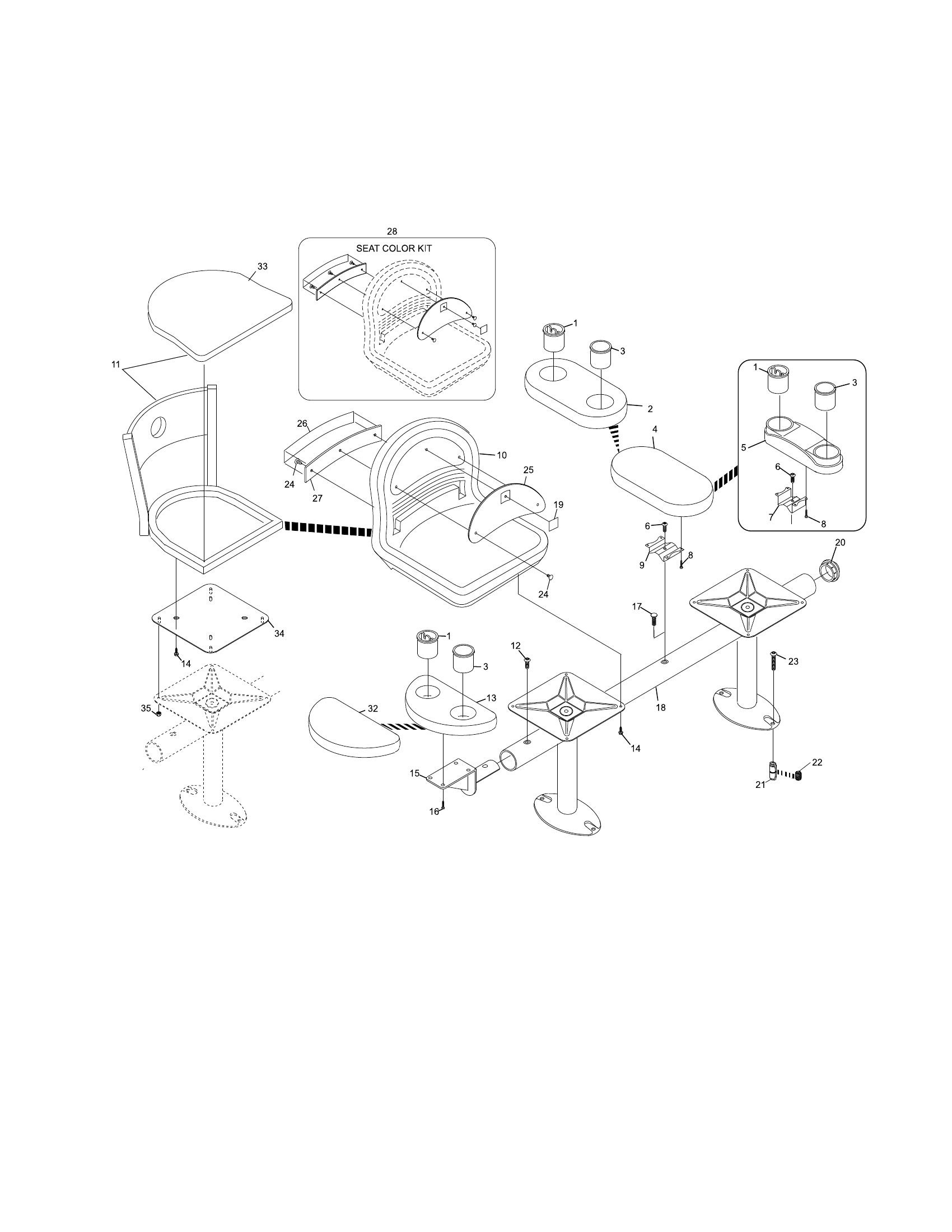

Frameworx Two Seat Rail (Short)

Позиция:

Поз.	Артикул	Наименование	Наличие
1	54-100259-000	Ashtray	Предзаказ
2	53-860977-XXX	N.A. Center Top w/Holes	Предзаказ
3	54-100260-000	Glass and Bottle Holder	Предзаказ
4	53-860978-000	N.A. Center Top w/o Holes	Предзаказ
5	53-861053-000	Ashtray/Drink Holder (Light Gray)	Предзаказ
5	53-861053-004	Ashtray/Drink Holder (Graphite)	Предзаказ
6	11-001344-001	Hex Hd. Cap Screw (3/8-16 x 1")	Предзаказ
7	53-400179-000	N.A. Ashtray/Drink Holder Mounting Bracket	Предзаказ
8	11-082703-001	Self Tapping Screw (#12-14 x 1/2")	Предзаказ
9	53-400176-000	Center Top Mounting Bracket	Предзаказ
11	54-861046-XXX	Bar Stool - Bucket Only - Voltaire 830B Style (Pkg. of 2)	Предзаказ
11	54-861106-XXX	Bar Stool - Bucket Only - Easton Style (Pkg. of 2)	Предзаказ
12	11-006345-000	Button Hd. Cap Screw (3/8-16 x 1")	Предзаказ
13	53-860975-XXX	End Table w/Holes (colors -220 through -225 only)	Предзаказ
14	11-082862-001	Self Tapping Screw (#14-10 x 1”)	Предзаказ
15	53-866958-000	End Table Weldment w/Hardware (Dark Gray)	Предзаказ
15	53-866958-100	End Table Weldment w/Hardware (Silver)	Предзаказ
16	11-001182-001	Hex Hd. Screw (1/4-20 x 3/4”)	Предзаказ
17	53-400302-000	Hole Plugs	Предзаказ
18	53-866020-100	Two Seat Rail - Short (Silver)	Предзаказ
18	53-866020-000	Two Seat Rail - Short (Dark Gray)	Предзаказ
19	53-400103-XXX	Front Decal	Предзаказ
20	53-400109-000	Tube Cap 3” (light gray)	Предзаказ
20	53-400109-100	Tube Cap 3” (silver)	Предзаказ
21	11-111560-000	Concrete Anchor (3/8-16 x 1-9/16”)	Предзаказ
22	53-860990-000	Wood Insert (3/8-16)	Предзаказ
23	53-400503-019	Button Hd. Cap Screw (3/8-16 x 2-1/4”) w/Dogpoint Lead - Silver	Предзаказ
23	53-400301-001	Button Hd. Cap Screw (3/8-16 x 2-1/4”)	Предзаказ
23	53-400301-003	Button Hd. Cap Screw (3/8-16 x 3/4”)	Предзаказ
23	53-400501-020	Button Hd. Cap Screw (3/8-16 x 3/4”)	Предзаказ
23	53-400503-020	Button Hd. Cap Screw (3/8-16 x 2-1/4”)	Предзаказ
24	53-861010-XXX	Plastic Fastener for Inserts (Pkg. of 10) - No Longer available in -220 Blueberry, Order -232 Light Gray as a replace...	Предзаказ
25	N.A.	N.A. Front Insert (use index No. 28)	Предзаказ
26	53-400111-XXX	Rear Decal	Предзаказ
27	53-400113-003	Rear Insert (Graphite)	Предзаказ
27	53-400113-000	Rear Insert (Light Gray)	Предзаказ
28	53-860960-XXX	Seat Color Kit (contains 1 each of item numbers 10, 11, 4 and 12 and 6 each of item 9)	Предзаказ
29	53-861052-000	Bracket Hardware Pkg	Предзаказ
30	11-195016-001	Lockwasher (3/8)	Предзаказ
31	11-082122-001	Screw (#12-14 x 1/2”)	Предзаказ
32	53-861054-000	End Table W/O Holes (colors -260 through -269 only)	Предзаказ
33	54-860511-XXX	Voltaire Seat - only (-001 Dark Cherry or -002 Maple Natural) (Pkg. of 4)	Предзаказ
34	53-100293-000	Seat Adapter Plate - Fix Fixed Seating	Предзаказ
35	11-051744-001	Гайка	Предзаказ
