Brunswick Bowling Service Parts 2023 Section E: Furniture Frameworx Table Assembly with Fixed Arm and Fixed Seat

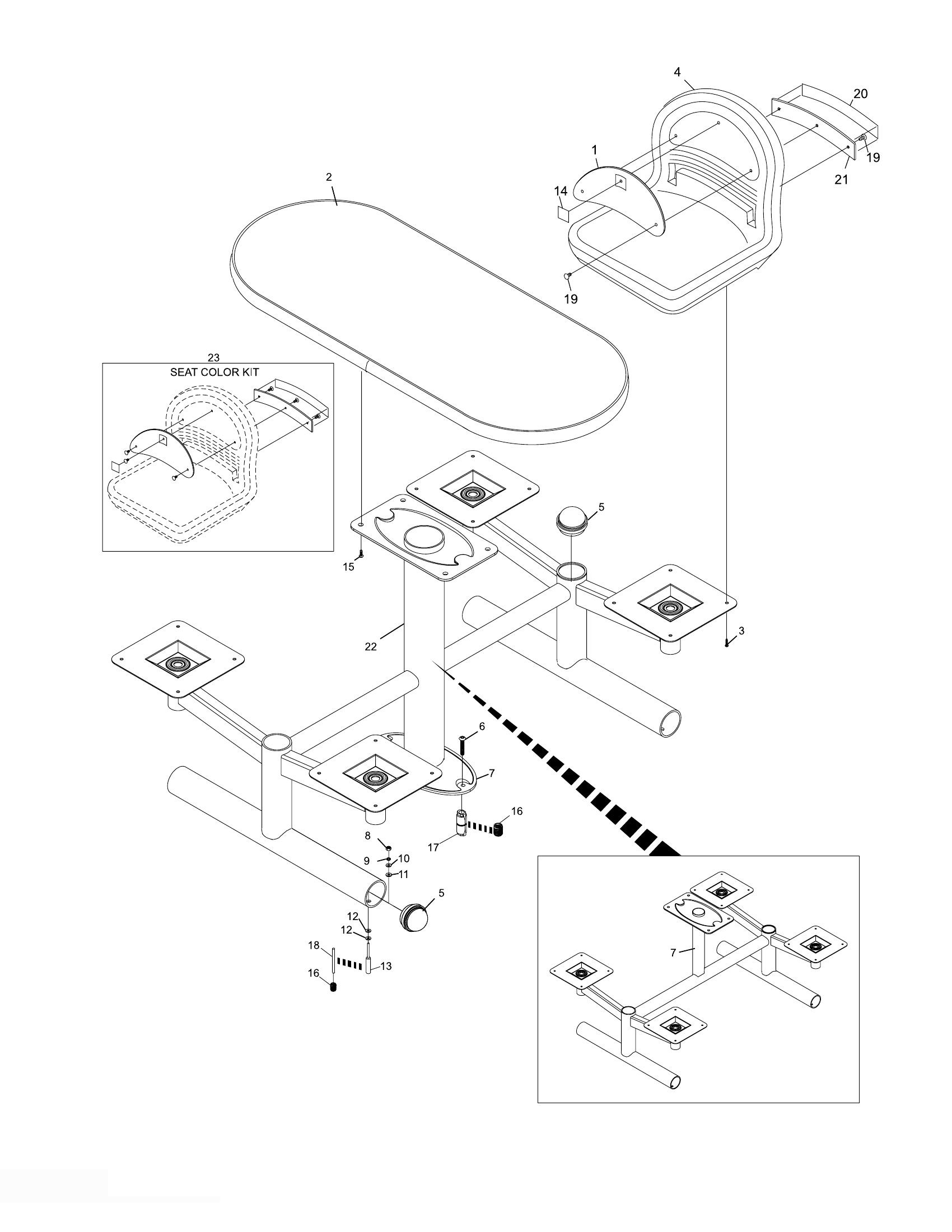

Frameworx Table Assembly with Fixed Arm and Fixed Seat

Поз.	Артикул	Наименование	Наличие
2	53-860968-XXX	Oval Table Top	Предзаказ
2	53-861102-XXX	Oval Table Top w/Slot (Not Illustrated)	Предзаказ
2	53-860999-000	Oval Table Top - reduced length	Предзаказ
2	53-861103-XXX	Oval Table Top w/Slot - reduced length	Предзаказ
3	11-082862-001	Self Tapping Screw (#14-10 x 1”)	Предзаказ
5	53-400109-000	Tube Cap 3” (light gray)	Предзаказ
5	53-400109-100	Tube Cap 3” (silver)	Предзаказ
6	53-400301-001	Button Hd. Cap Screw (3/8-16 x 2-1/4”)	Предзаказ
6	53-400301-003	Button Hd. Cap Screw (3/8-16 x 3/4”)	Предзаказ
6	53-400501-020	Button Hd. Cap Screw (3/8-16 x 3/4”)	Предзаказ
6	53-400503-020	Button Hd. Cap Screw (3/8-16 x 2-1/4”)	Предзаказ
8	11-125104-001	Hex Nut (3/8-16)	Предзаказ
9	11-195016-001	Lockwasher (3/8)	Предзаказ
10	11-191014-001	Flat Washer (3/8)	Предзаказ
11	11-194140-000	Belleville Washer (3/8)	Предзаказ
12	11-190014-003	Black Shim Washer (3/8)	Предзаказ
12	11-190014-001	Flat Washer (3/8)	Предзаказ
13	11-111456-000	Concrete Stud (3/8-16 x 3-1/2”)	Предзаказ
14	53-400103-XXX	Front Decal	Предзаказ
15	11-006345-000	Button Hd. Cap Screw (3/8-16 x 1")	Предзаказ
16	53-860990-000	Wood Insert (3/8-16)	Предзаказ
17	11-095011-000	Wood Insert (3/8-16)	Предзаказ
18	53-400309-000	Rod (3/8-16 x 3”) Pkg. - Wood Floor	Предзаказ
19	53-861010-XXX	Plastic Fastener for Inserts (Pkg. of 10) - No Longer available in -220 Blueberry, Order -232 Light Gray as a replace...	Предзаказ
22	53-861100-000	Table Weldment Pkg. Concrete/Wood Floors- Dark Gray	Предзаказ
23	53-860960-XXX	Seat Color Kit (contains 1 each of item numbers 10, 11, 4 and 12 and 6 each of item 9)	Предзаказ
