Brunswick Bowling Service Parts 2023 Section E: Furniture Frameworx Freestanding Chair (Tall)

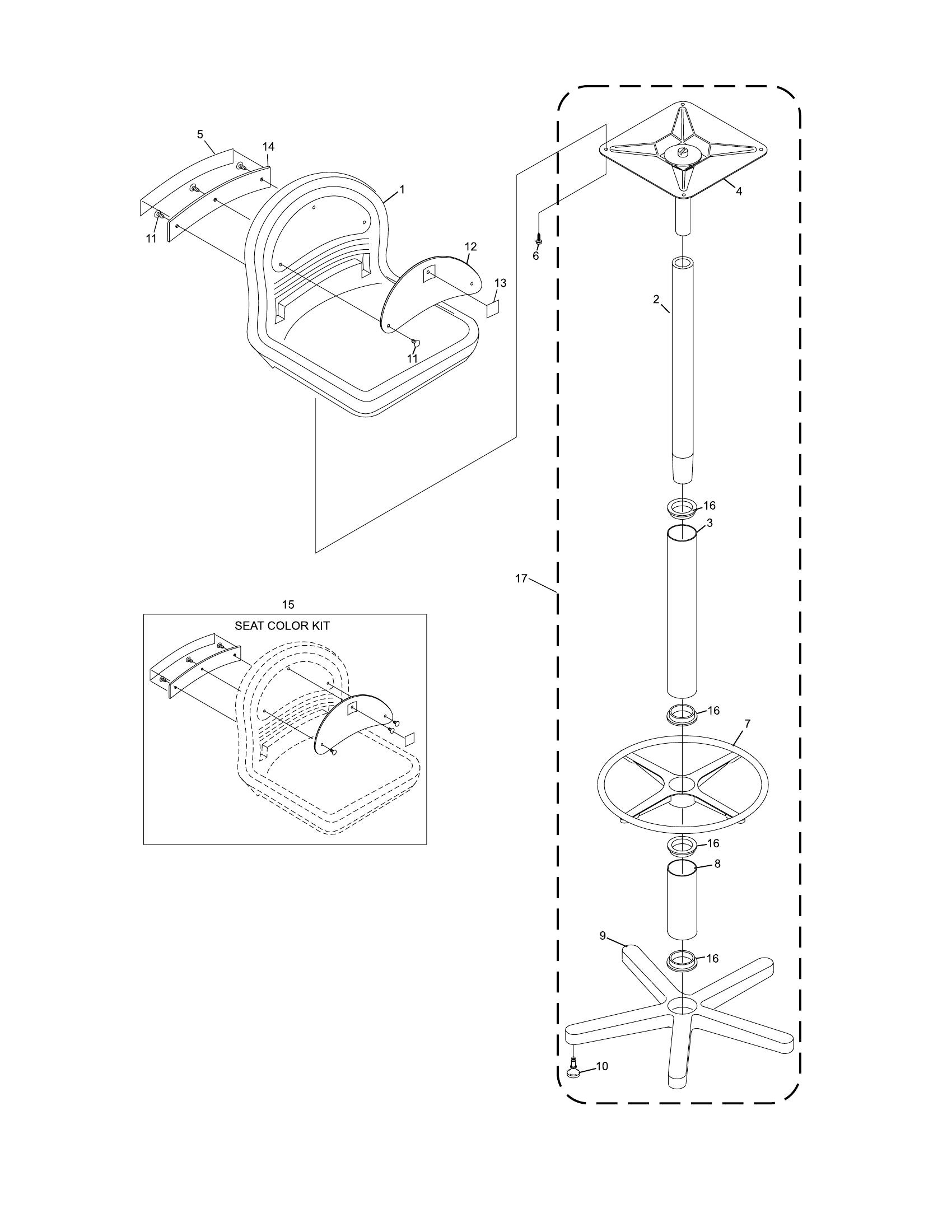

Frameworx Freestanding Chair (Tall)

Позиция:

Поз.	Артикул	Наименование	Наличие
2	53-400193-000	Column Assembly w/Bushing	Предзаказ
3	53-400257-000	Upper Cover Tube (Dark Gray)	Предзаказ
3	53-400257-100	Upper Cover Tube (Silver)	Предзаказ
4	53-400225-001	N.A. Seat Plate Assembly (Silver)	Предзаказ
4	53-400225-000	Seat Plate Assembly (Dark Gray)	Предзаказ
5	53-400111-XXX	Rear Decal	Предзаказ
6	11-082862-001	Self Tapping Screw (#14-10 x 1”)	Предзаказ
7	53-400196-000	Foot Rest Assembly	Предзаказ
8	53-400256-000	Lower Cover Tube (Dark Gray)	Предзаказ
8	53-400256-100	Lower Cover Tube (Silver)	Предзаказ
9	53-400194-000	Chair Base	Предзаказ
10	53-400195-000	Chair Glide	Предзаказ
11	53-861010-XXX	Plastic Fastener for Inserts (Pkg. of 10) - No Longer available in -220 Blueberry, Order -232 Light Gray as a replace...	Предзаказ
12	N.A.	Front Insert (use index number 15)	Предзаказ
13	53-400103-XXX	Front Decal	Предзаказ
14	53-400113-000	Rear Insert (Light Gray)	Предзаказ
15	53-860960-XXX	Seat Color Kit (contains 1 each of item numbers 10, 11, 4 and 12 and 6 each of item 9)	Предзаказ
16	53-400164-000	Chair Bearing (Dark Gray)	Предзаказ
17	53-861017-000	Pkg. Seat Base. (contains 1 each of item numbers: 2, 3, 4, 7, 8, & 9 and 5 each of item 5 and 4 each of item 16) - Da...	Предзаказ
17	53-861017-100	Pkg. Seat Base. (contains 1 each of item numbers: 2, 3, 4, 7, 8, & 9 and 5 each of item 5 and 4 each of item 16) - Si...	Предзаказ
