Brunswick Bowling Service Parts 2023 Section E: Furniture Frameworx Freestanding Chair (Short)

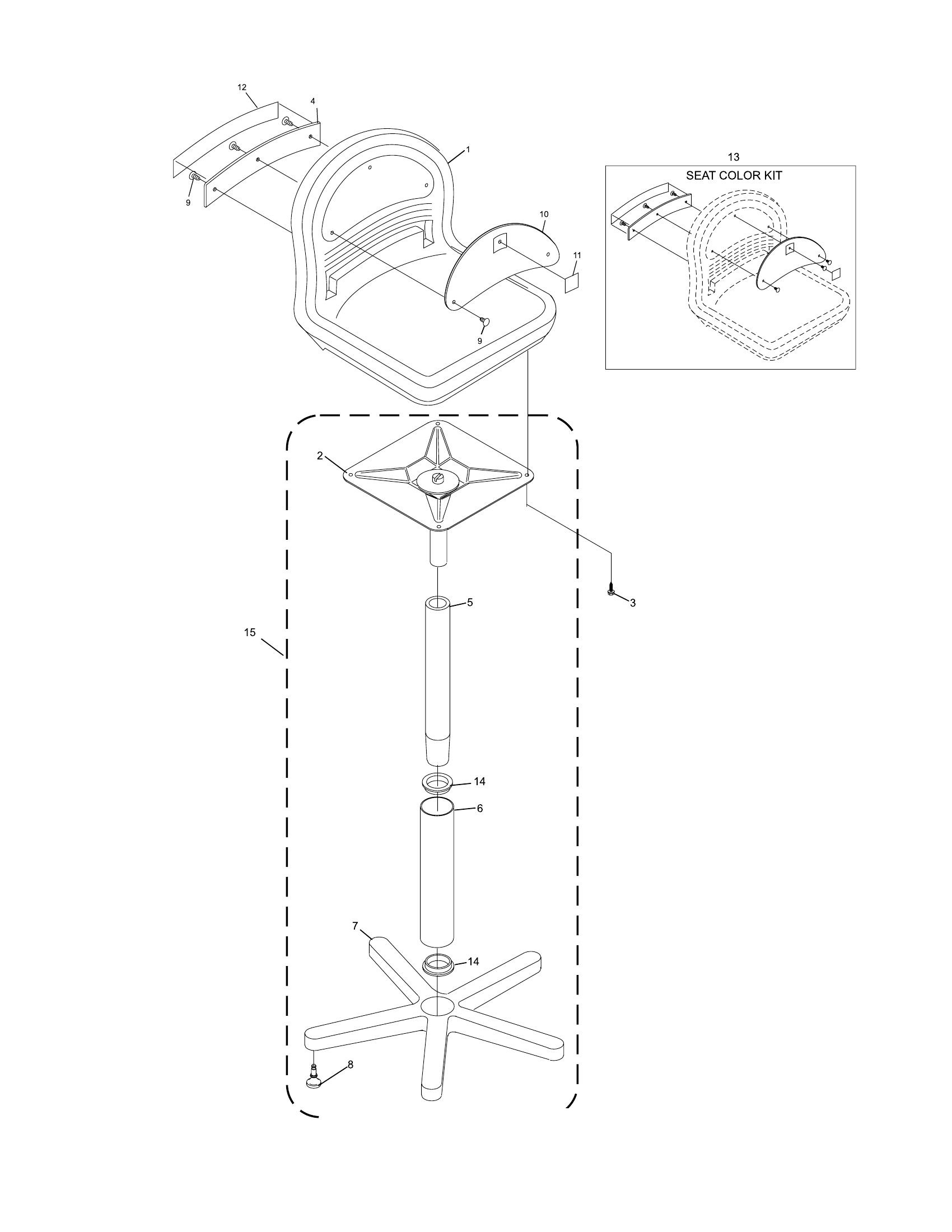

Frameworx Freestanding Chair (Short)

Поз.	Артикул	Наименование	Наличие
2	53-400225-001	N.A. Seat Plate Assembly (Silver)	Предзаказ
2	53-400225-000	Seat Plate Assembly (Dark Gray)	Предзаказ
3	11-082862-001	Self Tapping Screw (#14-10 x 1”)	Предзаказ
4	53-400113-000	Rear Insert (Light Gray)	Предзаказ
5	53-400203-000	Column Assembly w/Bushing (13-11/16" Length)	Предзаказ
5	53-400422-000	Column Assembly w/Bushing (12-1/2" Length)	Предзаказ
6	53-400258-000	Cover Tube Assembly (Dark Gray)	Предзаказ
6	53-400258-100	Cover Tube Assembly (Silver)	Предзаказ
7	53-400194-000	Chair Base	Предзаказ
8	53-400195-000	Опорная вставка	Предзаказ
9	53-861010-XXX	Plastic Fastener for Inserts (Pkg. of 10) - No Longer available in -220 Blueberry, Order -232 Light Gray as a replace...	Предзаказ
11	53-400103-XXX	Front Decal	Предзаказ
12	53-400111-XXX	Rear Decal	Предзаказ
13	53-860960-XXX	Seat Color Kit (contains 1 each of item numbers 10, 11, 4 and 12 and 6 each of item 9)	Предзаказ
14	53-400164-000	Chair Bearing (Dark Gray)	Предзаказ
15	53-861018-000	Pkg. Seat Base. (contains 1 each of item numbers: 2 , 5, 6, 7 and 5 each of item number 8 and 2 each of item number 1...	Предзаказ
15	53-861018-100	Pkg. Seat Base. (contains 1 each of item numbers: 2 , 5, 6, 7 and 5 each of item number 8 and 2 each of item number 1...	Предзаказ
